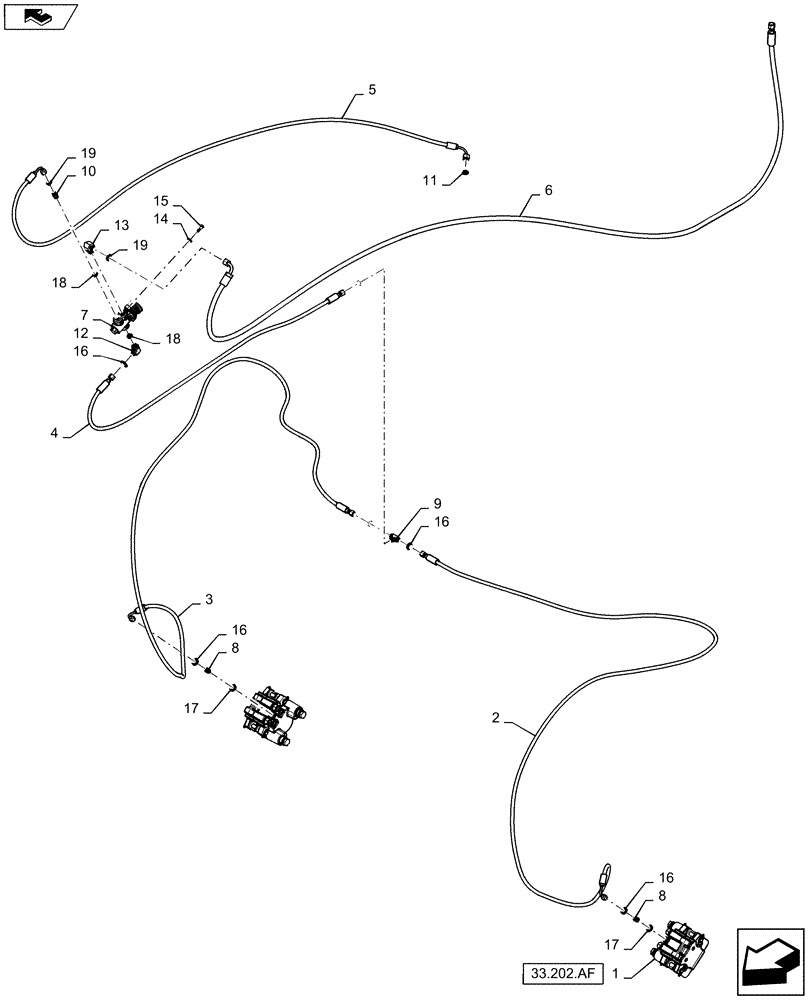

Запчасти Case IH 2240 (33.202.AP[01]) - BRAKE LINES (33) - BRAKES & CONTROLS

1

84310992

BRAKE CALIPER

Assembly

1шт.

See 33.202.AF For Service Parts

1шт.

2

BN307828

HOSE ASSY.,6.35mm ID x 4216.4mm L, SAE 100R17

9/16" - 18 ORFS Swivel Medium Elbow x 9/16" - 18 ORFS Swivel Short Straight x 1/8" ID x 166" Long, Tee To Left Side Caliper

1шт.

3

47422141

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel Medium Elbow x 9/16" - 18 ORFS Swivel Short Straight x 1/8" ID x 143" Long, Tee To Right Side Caliper

1шт.

4

84386214

HYDRAULIC HOSE

9/16" - 18 ORFS Swivel Short Straight x 9/16" - 18 ORFS Swivel Short Straight x 1/8" ID x 68" Long, Brake Valve To Tee

1шт.

5

84386215

HOSE

11/16" - 16 ORFS Swivel Medium Elbow x 11/16" - 16 ORFS Swivel Medium Elbow x 1/4" ID x 102" Long, Pressure Line To Brake Valve

1шт.

6

84386216

HOSE

11/16" - 16 ORFS Swivel Medium Elbow x 11/16" - 16 ORFS Swivel Short Straight x 3/8" ID x 233" Long, Gear Pump To Brake Valve

1шт.

7

47754838

VALVE

Brake

1шт.

8

BN302640

FITTING

9/16 -18 ORFS x 7/16 -20 ORB, Incl 21

2шт.

9

BN302511

FITTING

9/16" -18 ORFS

1шт.

10

BN302641

FITTING

9/16-18 ORFS x 9/16-18 ORB

1шт.

11

BN305411

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

FOR -4 FFOR

1шт.

12

BN302549

ELBOW

9/16-18 ORFS x 9/16-18 ORB

1шт.

13

BN302554

FITTING

11/16-16 ORFS x 3/4-16 ORB x 90 Deg

1шт.

14

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

Brake Valve Mounting

2шт.

15

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

Brake Valve Mounting

2шт.

16

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

4шт.

17

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16", ORB

2шт.

18

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

2шт.

19

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

11/16", ORFS

4шт.
