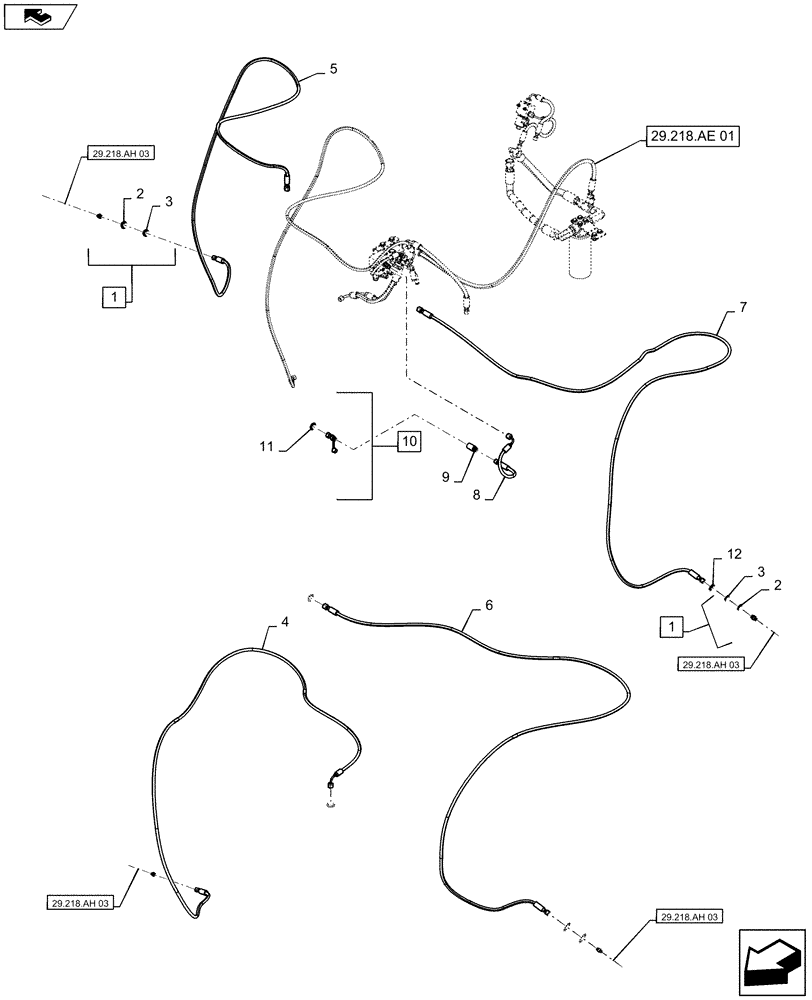

Запчасти Case IH 2240 (33.110.BJ[01]) - PARKING BRAKE LINES (33) - BRAKES & CONTROLS

1

BN305432

ADAPTER

Fitting, Incl 2, 3

4шт.

2

86598098

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

4шт.

3

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.

4

84373486

HYDRAULIC HOSE

9/16" -18 ORFS Swivel Short Elbow x 11/16" -16 ORFS Swivel Medium Elbow x 1/4" ID x 141", From Right Front Wheel HubTo Steel Line

1шт.

5

84374684

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Short Straight x 1/4" ID x 154 3/4", From Right Rear Wheel HubTo Steel Line

1шт.

6

84373489

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Short Straight x 1/4" ID x 170", From Left Front Wheel HubTo Steel Line

1шт.

7

84373493

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Short Straight x 1/4" ID x 174", From Right Rear Wheel HubTo Steel Line

1шт.

8

84373499

HYDRAULIC HOSE

1/4" -18 Fixed Female Pipe Thread Straight x 11/16" -16 ORFS Swivel Medium Elbow x 1/4" ID x 16", From Park Brake / Wheel Motor Control Valve To Diagnostic Coupling

1шт.

9

BN307992

COUPLING

Diagnostic, 1/4-18 NPT

1шт.

10

BN307993

NIPPLE, LUBE

Diagnostic, Incl 11

1шт.

11

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

6шт.

12

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

4шт.
