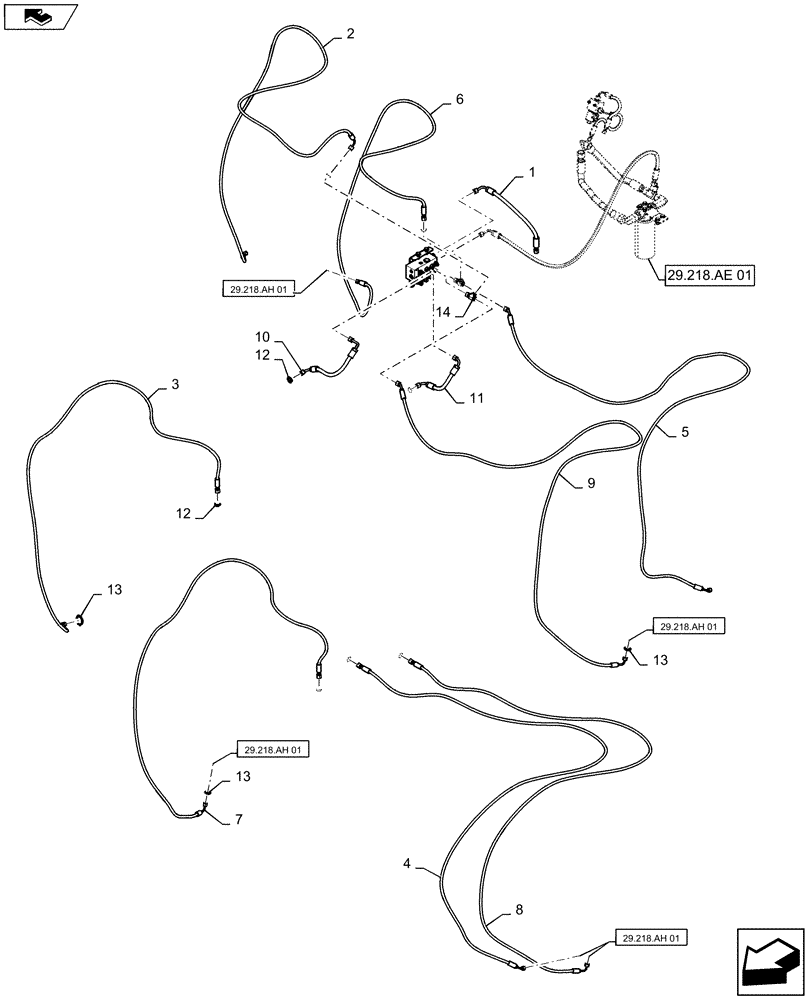

Запчасти Case IH 2240 (29.218.AS[03]) - WHEEL MOTOR CONTROL LINES (29) - HYDROSTATIC DRIVE

№

Артикул

Название

Примечание

Количество

1

84367844

HOSE

11/16" -16 ORFS Swivel Long Elbow x 11/16" -16 ORFS Swivel Short Straight, 3/8" ID x 21", From Steel Line To Control Valve

1шт.

2

84373476

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Medium Elbow x 9/16" -18 ORFS Swivel Short 45, 1/4" ID x 144", From Right Rear Wheel MotorTo Control Valve

1шт.

3

84373477

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Short 45, 1/4" ID x 136", From Right Front Wheel MotorTo Steel Line

1шт.

4

84373478

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Short 45, 1/4" ID x 166", From Left Front Wheel MotorTo Steel Line

1шт.

5

84373479

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short 45 x 9/16" -18 ORFS Swivel Short 45, 1/4" ID x 163", From Left Rear Wheel MotorTo Control Valve

1шт.

6

84373480

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Medium Elbow x 9/16" -18 ORFS Swivel Medium Elbow, 1/4" ID x 158", From Right Rear Wheel MotorTo Control Valve

1шт.

7

84373481

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Medium Elbow, 1/4" ID x 146", From Right Front Wheel MotorTo Steel Line

1шт.

8

84378299

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Straight x 9/16" -18 ORFS Swivel Medium Elbow, 1/4" ID x 176", From Left Front Wheel MotorTo Steel Line

1шт.

9

84373484

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short 45 x 9/16" -18 ORFS Swivel Medium Elbow, 1/4" ID x 169", From Left Rear Wheel MotorTo Control Valve

1шт.

10

47591119

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Long Elbow x 11/16" -16 ORFS Swivel Short Elbow, 3/8" ID x 16 1/2", From Steel Line To Control Valve

1шт.

11

47591118

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Short Elbow x 11/16" -16 ORFS Swivel Short Elbow, 3/8" ID x 14 1/2", From Steel Line To Control Valve

1шт.

12

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

15шт.

13

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

8шт.

14

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel Incl 12

2шт.

Выбрано товаров: 14
