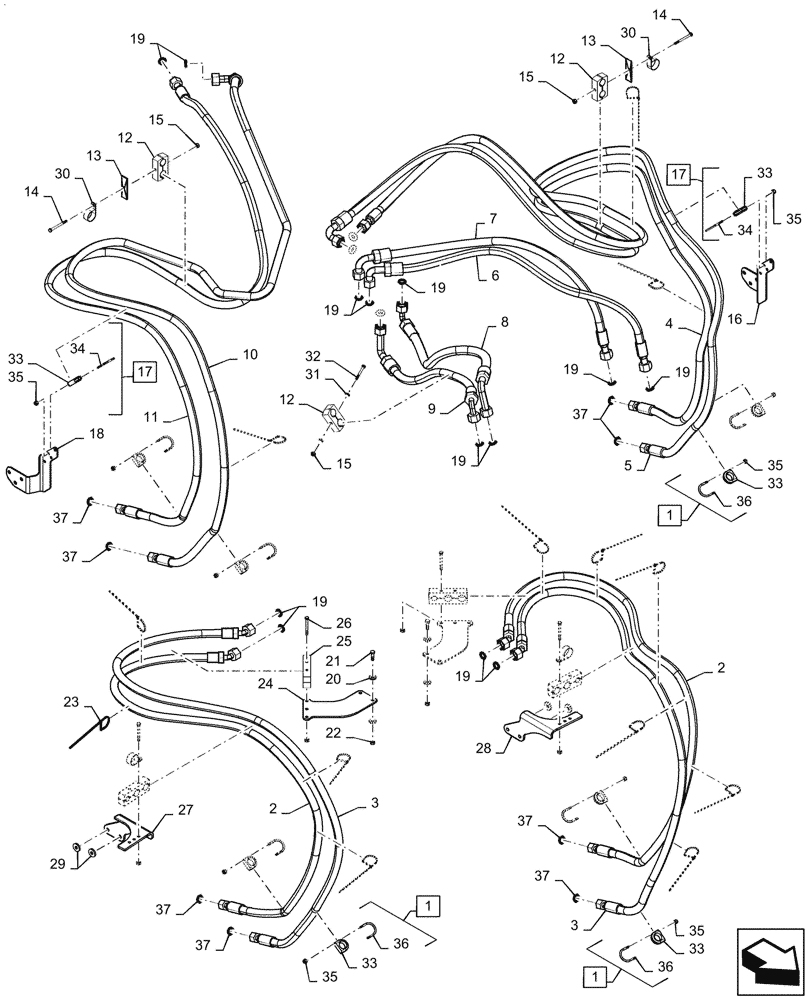

Запчасти Case IH 2240 (29.218.AS[02]) - DRIVE HOSE ASSY. ASN YET040196 (29) - HYDROSTATIC DRIVE

1

47618436

CLAMP

1", Incl 33, 35, 36

8шт.

2

47657721

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Short Straight x 1-7/16" -12 ORFS Swivel Short 45° Elbow, 3/4" ID x 8' 9 1/4" Long, Steel Lines to Front Wheel Motors Port A

2шт.

3

47657722

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Short Straight x 1-7/16" -12 ORFS Swivel Short 45° Elbow, 3/4" ID x 9' 5 1/4" Long, Steel Lines to Front Wheel Motors Port B

2шт.

4

47657723

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Short Straight x 1-7/16" -12 ORFS Swivel Medium Elbow, 3/4" ID x 15' 9 1/4" Long, RH Hydrostat Tee to Left Rear Wheel Motor Port A

1шт.

5

47657724

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Short Straight x 1-7/16" -12 ORFS Swivel Short Straight, 3/4" ID x 16' Long, RH Hydrostat Tee to Left Rear Wheel Motor Port B

1шт.

6

84368897

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Short Elbow, 3/4" ID x 56 1/2" Long, LH Hydrostat Tee to Steel Line A1

1шт.

7

84368893

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Medium Elbow, 3/4" ID x 53 1/2" Long, LH Hydrostat Tee to Steel Line B1

1шт.

8

47700777

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Long Elbow x 1-7/16" -12 ORFS Swivel Short Elbow, 3/4" ID x 43 1/4" Long, RH Hydrostat Tee to Steel Line A2

1шт.

9

47657727

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Long Elbow x 1-7/16" -12 ORFS Swivel Short Elbow, 3/4" ID x 39 3/8" Long, RH Hydrostat Tee to Steel Line B2

1шт.

10

47657726

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Short Straight x 1-7/16" -12 ORFS Swivel Medium Elbow, 3/4" ID x 16' Long, LH Hydrostat Tee to Right Rear Wheel Motor Port B

1шт.

11

47657725

HYDRAULIC HOSE

1-3/16" -12 ORFS Swivel Short Straight x 1-7/16" -12 ORFS Swivel Short Straight, 3/4" ID x 15' 9 1/4" Long, LH Hydrostat Tee to Right Rear Wheel Motor Port A

1шт.

12

BN309849

CLAMP

Dual Tube

3шт.

13

1324469C1

PLATE

Hose Clamp

2шт.

13

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

8шт.

14

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

2шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

11шт.

16

84369312

SUPPORT

Left Hand, Rear Hose

1шт.

17

84559241

CLAMP

1", Incl 33 - 35

4шт.

18

84369316

SUPPORT

Right Hand, Rear Hose

1шт.

19

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

7шт.

20

86981676

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

21

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

22

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

23

BN570007

STRAP

14"

28шт.

24

47407771

MOUNT

Front Hose

2шт.

25

47407455

CLAMP

Triple Tube

4шт.

26

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

8шт.

27

47410466

MOUNT

Right Hand, Front Hose

1шт.

28

47409484

MOUNT

Left Hand, Front Hose

1шт.

29

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

4шт.

30

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

4шт.

31

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

2шт.

32

86980387

BOLT,Hex, M8 x 70mm, Cl 8.8

1шт.

33

BN320370

INSERT

1"

12шт.

34

84558498

SPECIAL BOLT

U Bolt

4шт.

35

BN320369

NUT

1/4" - 20

24шт.

36

47618437

U-BOLT

U Bolt

8шт.

37

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.
