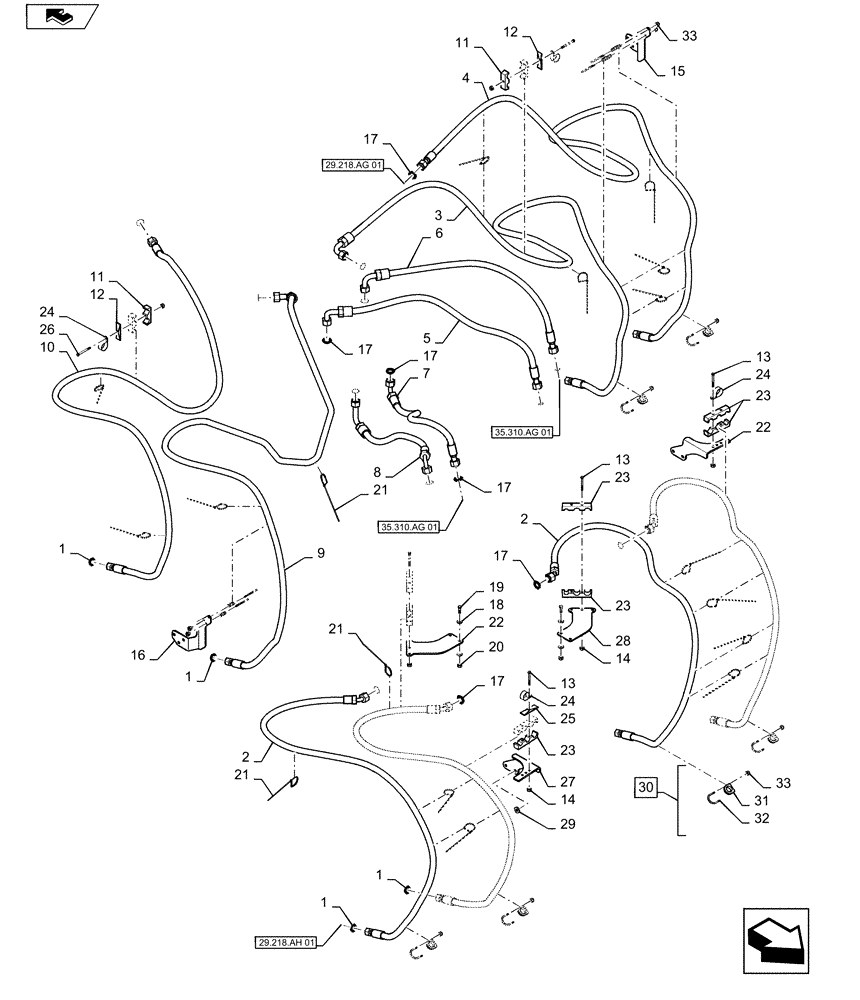

Запчасти Case IH 2240 (29.218.AS[01]) - DRIVE HOSE ASSY. BSN YET040197 (29) - HYDROSTATIC DRIVE

1

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

2

47657721

HYDRAULIC HOSE

-12 x 2675mm

2шт.

3

47657722

HYDRAULIC HOSE

-12 x 2878mm

2шт.

4

47657723

HYDRAULIC HOSE

-12 x 4807mm

1шт.

5

84368897

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Short Elbow, 3/4" ID x 56 1/2", From Hydrostat to Steel Line A1

1шт.

6

84368893

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Medium Elbow, 3/4" ID x 53 1/2", From Hydrostat to Steel Line B1

1шт.

7

47414025

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Straight Short x 1-7/16" -12 ORFS Swivel Short Elbow, 3/4" ID x 49 1/2", From Hydrostat to Steel Line A2

1шт.

8

47414027

HYDRAULIC HOSE

1-7/16" -12 ORFS Swivel Long Elbow x 1-7/16" -12 ORFS Swivel Short Elbow, 3/4" ID x 39", From Hydrostat to Steel Line B2

1шт.

9

47657727

HYDRAULIC HOSE

-12 x 1000mm

1шт.

10

47657726

HYDRAULIC HOSE

-12 x 4877mm

1шт.

11

BN309849

CLAMP

Dual Tube

2шт.

12

1324469C1

PLATE

Hose Clamp

2шт.

13

86980388

BOLT,Hex, M8 x 1.25 x 80mm, Cl 8.8

8шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

15

84369312

SUPPORT

Left Hand, Rear Hose

1шт.

16

84369316

SUPPORT

Right Hand, Rear Hose

1шт.

17

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

8шт.

18

86981676

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

8шт.

19

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

20

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

21

BN570007

STRAP

14"

28шт.

22

47407771

MOUNT

Front Hose

2шт.

23

47407455

CLAMP

3 Tube

4шт.

24

47618436

CLAMP

1"

8шт.

25

384870A1

PLATE

Cover, Hose Clamp

8шт.

26

86516527

BOLT,Hex, M8 x 110mm, Cl 10.9

8шт.

27

47410466

MOUNT

Right Hand, Front Hose

1шт.

28

47409484

MOUNT

Left Hand, Front Hose

1шт.

29

86592701

WASHER,13mm ID x 35mm OD x 5mm Thk

4шт.

30

84559241

CLAMP

1", Incl 31,32 And 33

4шт.

31

BN320370

INSERT

1"

12шт.

32

84558498

SPECIAL BOLT

U Bolt

12шт.

33

BN320369

NUT

1/4 - 20

24шт.

34

86980389

BOLT,Hex, M8 x 1.25 x 90mm, Cl 8.8

M8 X 90 8.8 DOR

2шт.

35

515-24444

CLAMP,44.4mm ID, 11.9mm Bolt Hole, P Type

4шт.
