(29.218.AH[01]) - WHEEL MOTOR

Запчасти Case IH 2240 (29.218.AH[01]) - WHEEL MOTOR (29) - HYDROSTATIC DRIVE

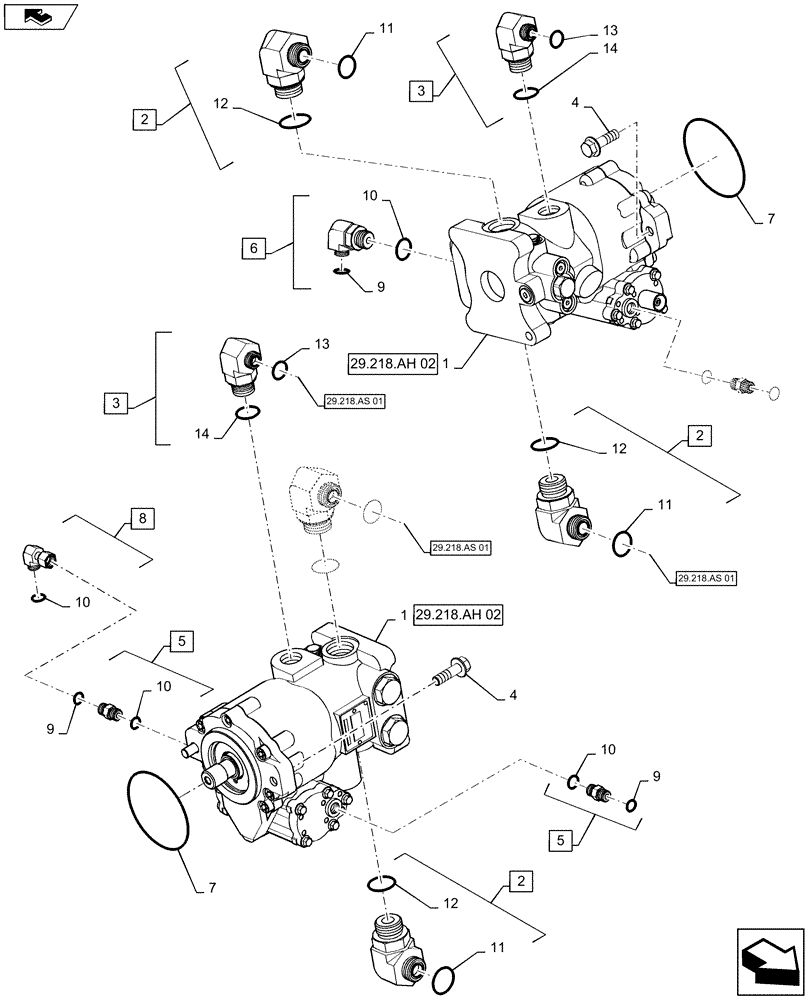

Схема запчастей Case IH 2240 - (29.218.AH[01]) - WHEEL MOTOR (29) - HYDROSTATIC DRIVE
6
5
2
12
12
3
1
8
29.218.as 01
3
29.218.ah 02
10
1
12
4
29.218.as 01
11
10
14
4
13
9
29.218.ah 02
13
9
14
home
7
7
10
29.218.as 01
5
10
11
2
11
9
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84246707

HYDRAULIC MOTOR

Wheel Motor

4шт.

2

BN302570

ELBOW

1-3/16-12 ORFS x 1-5/16-12 ORB, Incl 11,12

8шт.

3

BN302560

FITTING

8MOR 12MB X 90, Incl 13, 14

4шт.

4

87695413

BOLT,M12 x 51.8mm, Cl 10.9

8шт.

5

BN302641

FITTING

9/16-18 ORFS x 9/16-18 ORB, Incl 9, 10

6шт.

6

BN302549

ELBOW

Union Swivel, 9/16-18 ORFS x 9/16-18 ORB, Incl 9,10

2шт.

7

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

4шт.

8

84263248

ELBOW UNION

9/16 - 18 ORFS Female Swivel x 9/16 - 18 ORFS, Incl 10

2шт.

9

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

6шт.

10

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

10шт.

11

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

8шт.

12

167268

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

8шт.

13

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

4шт.

14

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

4шт.
