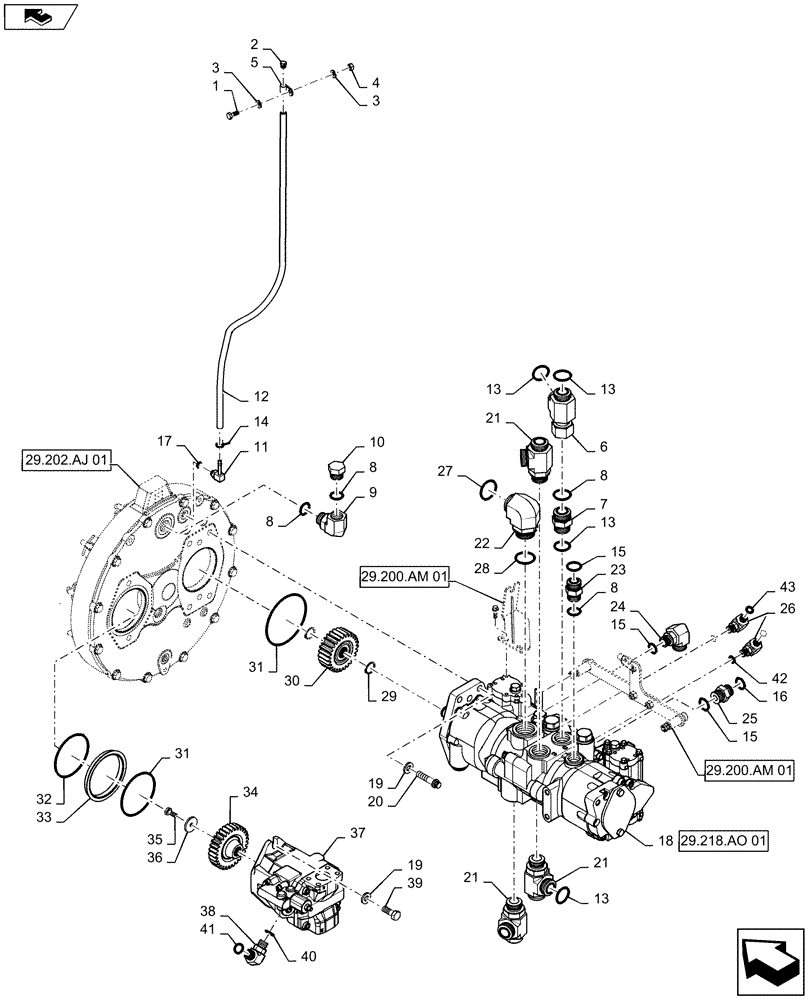

Запчасти Case IH 2240 (29.218.AG[01]) - HYDROSTATIC PUMP, DRIVE (29) - HYDROSTATIC DRIVE

1

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

2

854071

BREATHER

Filter Cap

1шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2mm, DOR

2шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

5

515-22111

CLAMP,7/16", Insul, 5/16" Bolt

1шт.

6

BN302439

FITTING

1-7/16" - 12 ORFS x 1/7/16 - 12 ORB, Swivel Run Tee, Inc Ref 13

1шт.

7

BN57223

FITTING

1-7/16" -12 ORFS x 1-5/16" -12 ORB, Inc Ref 8, 13

1шт.

8

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1-1/16", ORB

6шт.

9

87272659

HYD CONNECTOR

1-1/16" - 12 ORFS x 1-1/16" - 12 ORB, Inc Ref 8

1шт.

10

BN54270

PLUG

Hex, 1-1/16 - 12 ORB,, Inc Ref 8

1шт.

11

84177575

ADAPTER

1/4" Hose To 7/16 - 20, 90 Degree

1шт.

12

87280926

FUEL HOSE

Breather

1шт.

13

9824050

O-RING,0.07" Thk x 0.926" ID, -21, Cl 6, 90 Duro

1-7/16", ORFS

6шт.

14

86637701

HOSE CLAMP,12.45mm - 12.95mm

1шт.

15

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

1-3/16", ORFS

5шт.

16

167269

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

7/8", ORB

2шт.

17

165202

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

7/16",ORB

1шт.

18

47396626

HYDROSTATIC PUMP,46 CC

Tandem, Complete, See 29.218.AO 01 For Service Parts

1шт.

19

84601884

WASHER

1/2", DOR

8шт.

20

84585611

12 PT SCREW

1/2" - 13 x 2"

6шт.

21

84381546

RUN TEE

1-7/16" - 12 ORFS x 1-5/16" - 12 Run, Inc Ref 13

3шт.

22

BN302577

ELBOW

1-11/16" - 12 ORFS x 1-5/8" - 12 ORB, Inc Ref 27, 28

1шт.

23

BN302655

FITTING

1-3/16"-12 ORFS x 1-1/16"-12 ORB, Inc Ref 15, 8

1шт.

24

BN53590

ELBOW

1-3/16" -12 ORFS x 7/8" -14 ORB, Inc Ref 15, 16

1шт.

25

BN305057

FITTING

1-3/16" -12 ORFS x 7/8" -14 ORB, Inc Ref 15, 16

1шт.

26

BN302549

ELBOW

9/16" - 18 ORFS x 9/16" - 18 ORB, Inc Ref 42, 43

2шт.

27

9824051

O-RING,0.07" Thk x 1.176" ID, -25, Cl 6, 90 Duro

1-11/16", ORFS

1шт.

28

570186

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1-5/8", ORB

1шт.

29

9617878

SNAP RING,#98, Ext

1шт.

30

84253764

GEAR

Driven, 27T

1шт.

31

9706914

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

2шт.

32

9828498

O-RING,0.103" Thk x 3.987" ID, -155, Cl 5, 75 Duro

1шт.

33

84479774

RING

Adapter

1шт.

34

84249984

GEAR

Driven, 30T

1шт.

35

87317427

WASHER,0.28" ID x 1" OD x 0.11" Thk

1/4"

1шт.

36

84340186

BOLT

1/4" - 20 x 0.625", Gr 8

1шт.

37

BN316492

PUMP,28 CC

Pressure Compensated

1шт.

37

BN316492R

REMAN-HYD PUMP

Pressure Compensated

1шт.

37

BN316492C

CORE-HYDRAULIC PUMP

Return Number

1шт.

38

BN302558

ELBOW

13/16" - 16 ORFS x 3/4" - 16 ORB, Inc Ref 40, 41

1шт.

39

87342793

BOLT

.5 x 1.25, Gr 5, DOR

2шт.

40

128825

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

3/4", ORB

1шт.

41

9992298

O-RING,0.07" Thk x 0.489" ID, -14, Cl 6, 90 Duro

13/16", ORFS

1шт.

42

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

9/16", ORB

2шт.

43

9825770

O-RING,0.07" Thk x 0.301" ID, -11, Cl 6, 90 Duro

9/16", ORFS

2шт.
