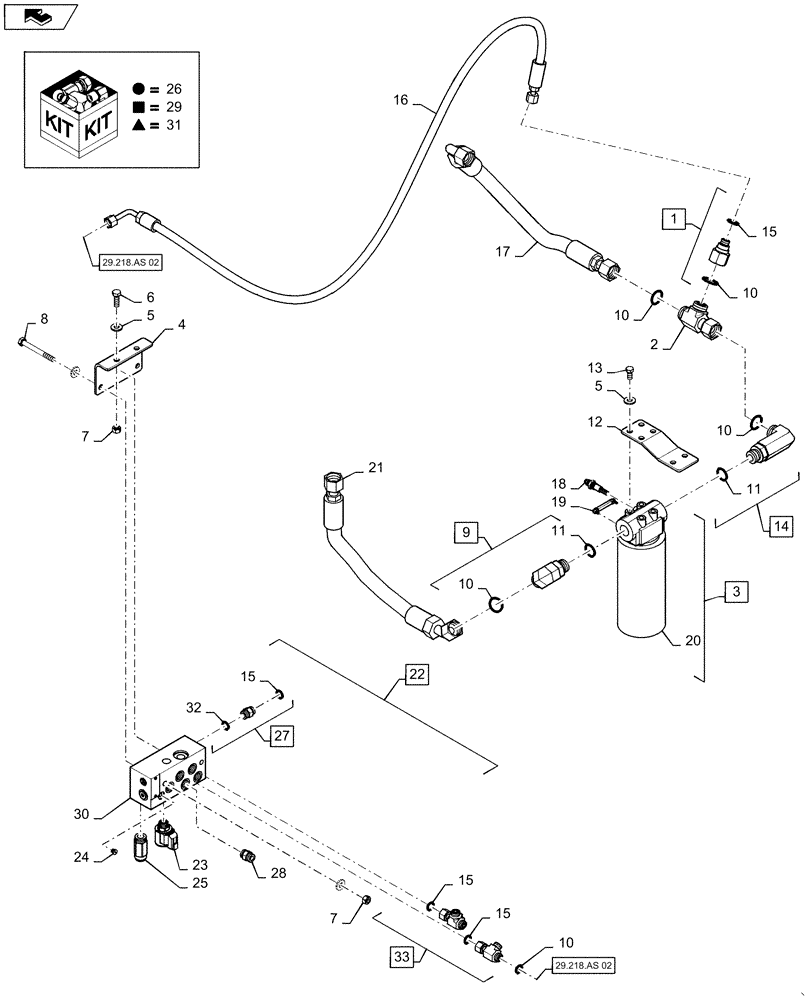

Запчасти Case IH 2240 (29.218.AE[01]) - WHEEL MOTOR CONTROL AND PARKING BRAKE VALVE (29) - HYDROSTATIC DRIVE

1

84379013

ADAPTER

11/16 -16 ORFS x 1-3/16 -12 ORFS Incl 10, 15

1шт.

2

BN302438

FITTING

1-3/16 -12 ORFS Swivel Run Tee

1шт.

3

84518878

HYDRAULIC OIL FILTER

Hydraulic, Complete Assembly, Incl 18, 19, 20

1шт.

4

84344650

STEEL PLATE

Valve Mounting

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

6

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

4шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

8

86980409

BOLT,Hex, M10 x 1.5 x 90mm, Cl 8.8

2шт.

9

BN302568

ELBOW

1-3/16 -12 ORFS x 1-1/16 -12 ORB Incl 10, 11

1шт.

10

9991976

O-RING,0.07" Thk x 0.739" ID, -18, Cl 6, 90 Duro

6шт.

11

167266

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

2шт.

12

84344653

BRACKET, SUPPORTING

Filter

1шт.

13

87342763

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 -16 x 3/4, DOR

4шт.

14

BN302423

ELBOW

1-3/16 -12 ORFS x 1-1/16 -12 ORB Incl 10, 11

1шт.

15

9993141

O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro

12шт.

16

84368566

HYDRAULIC HOSE

11/16" -16 ORFS Swivel Long Elbow x 11/16" -16 ORFS Swivel Short Straight, 3/8" ID x 80", From Filter Tee To Control Valve

1шт.

17

84368567

HYDRAULIC HOSE

1 3/16" -12 ORFS Swivel Short Elbow x 1 3/16" -12 ORFS Swivel Short Straight, 3/4" ID x 27", From Filter Tee To Hydro

1шт.

18

BN54258

SENDER UNIT

Electrical

1шт.

19

BN98626

INDICATOR

Visual

1шт.

20

84516422

HYDRAULIC OIL FILTER

Element, Spin On

1шт.

21

47428109

HOSE,19.05mm ID x 665mm L, SAE 100R17

1 3/16" -12 ORFS Swivel Short 45 x 1 3/16" -12 ORFS Swivel Short Straight, 3/4" ID x 26", From Filter To Hydro

1шт.

22

47463286

CONTROL VALVE

Wheel Motor Control and Park Brake Valve, Complete, Incl 23, 24, 25, 27, 28, And 30

1шт.

23

87582524

COIL

12V

3шт.

24

47476036

CHECK VALVE

Hydraulic

1шт.

25

47445359

VALVE

Relief

1шт.

26

87364602

SEAL KIT

For Ref 24, 25

2шт.

27

BN302646

FITTING

Straight, -6 ORFS x 9/16 -18 ORB, Incl 15, 32

7шт.

28

47445356

SOLENOID VALVE

Motor Control

2шт.

29

87269973

SEAL KIT

For Ref 28

2шт.

30

47445357

SOLENOID VALVE

Park Brake

1шт.

31

87269976

SEAL KIT

For Ref 30

1шт.

32

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

7шт.

33

BN302435

TEE

11/16 -16 ORFS x 11/16 -16 ORFS Swivel Run, Incl 15

2шт.
