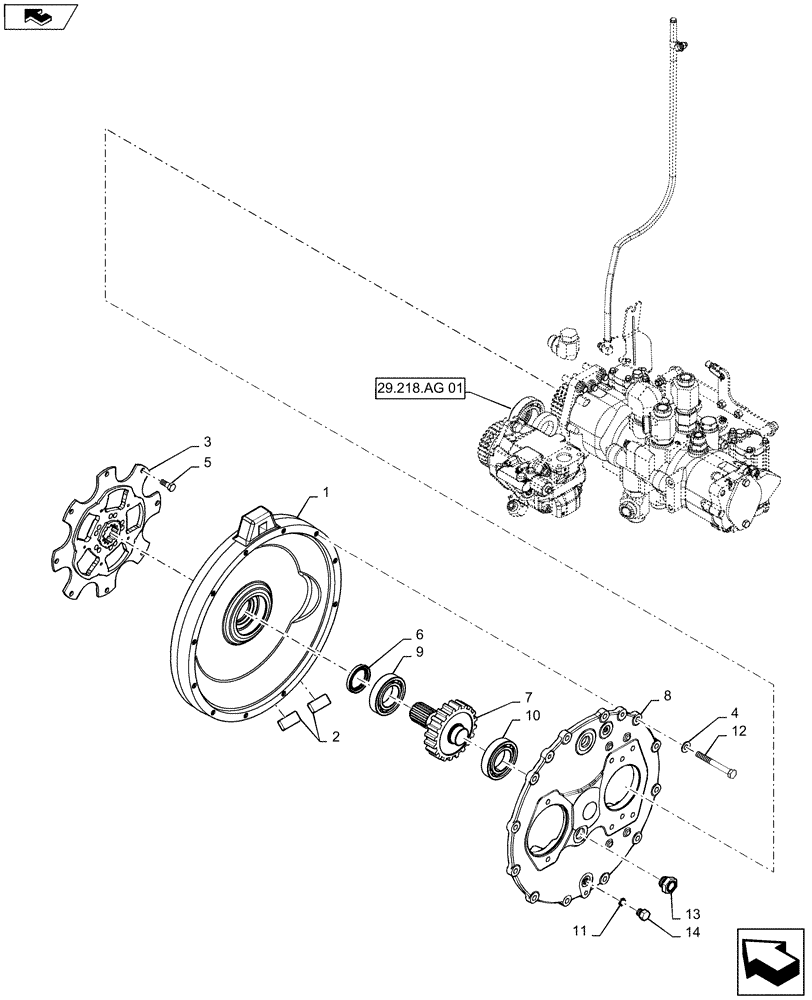

Запчасти Case IH 2240 (29.202.AJ[01]) - PUMP DRIVE AND HOUSING (29) - HYDROSTATIC DRIVE

1

87643062

GEARBOX

Splitter

1шт.

2

9840491

MAGNET

Ceramic

2шт.

3

87652184

DAMPER

Flywheel

1шт.

4

84603129

BELLEVILLE WASHER,M10 Bolt Size x 22mm OD x 1.6mm Thk

M10 x 22mm, DOR

12шт.

5

43139

BOLT,M10 x 1.5 x 25mm, Cl 8.8

8шт.

6

86623595

RUBBER SEAL,45mm ID x 62mm OD x 8mm Thk

Oil

1шт.

7

87658697

GEAR SHAFT

39T

1шт.

8

47395902

COVER

Gearbox

1шт.

9

84156145

BALL BEARING,50mm ID x 90mm OD x 20mm W

Hardened

1шт.

10

84156144

BALL BEARING,40mm ID x 68mm OD x 15mm W

Hardened

1шт.

11

9617873

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

12

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

12шт.

13

87270243

GAUGE

Sight

1шт.

14

BN446048

PLUG

Hex, O - Ring, 9/16 - 18

1шт.
