(27.100.AK[02]) - REAR AXLE WEAR PAD

Запчасти Case IH 2240 (27.100.AK[02]) - REAR AXLE WEAR PAD (27) - REAR AXLE SYSTEM

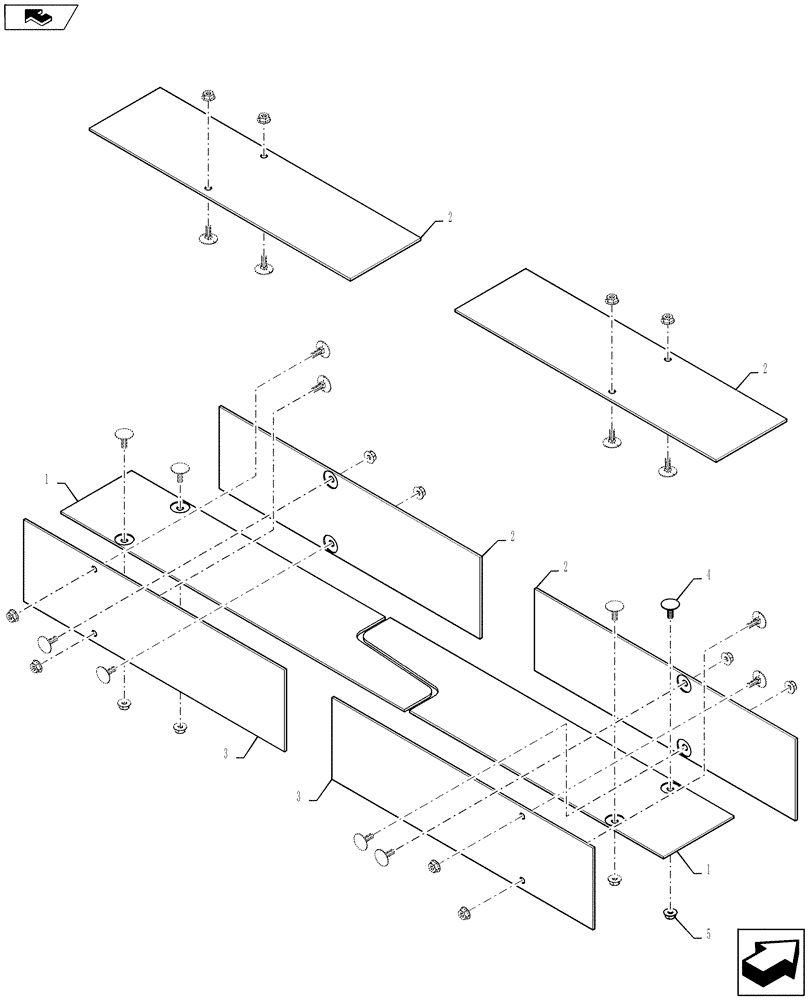

Схема запчастей Case IH 2240 - (27.100.AK[02]) - REAR AXLE WEAR PAD (27) - REAR AXLE SYSTEM
4
2
5
2
3
1
2
3
1
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84531365

SHIM

Rear Axle, Bottom

2шт.

2

84531366

SHIM

Rear Axle, Top and Front

4шт.

3

84531367

SHIM

Rear Axle, Rear

2шт.

4

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

16шт.

5

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

16шт.
