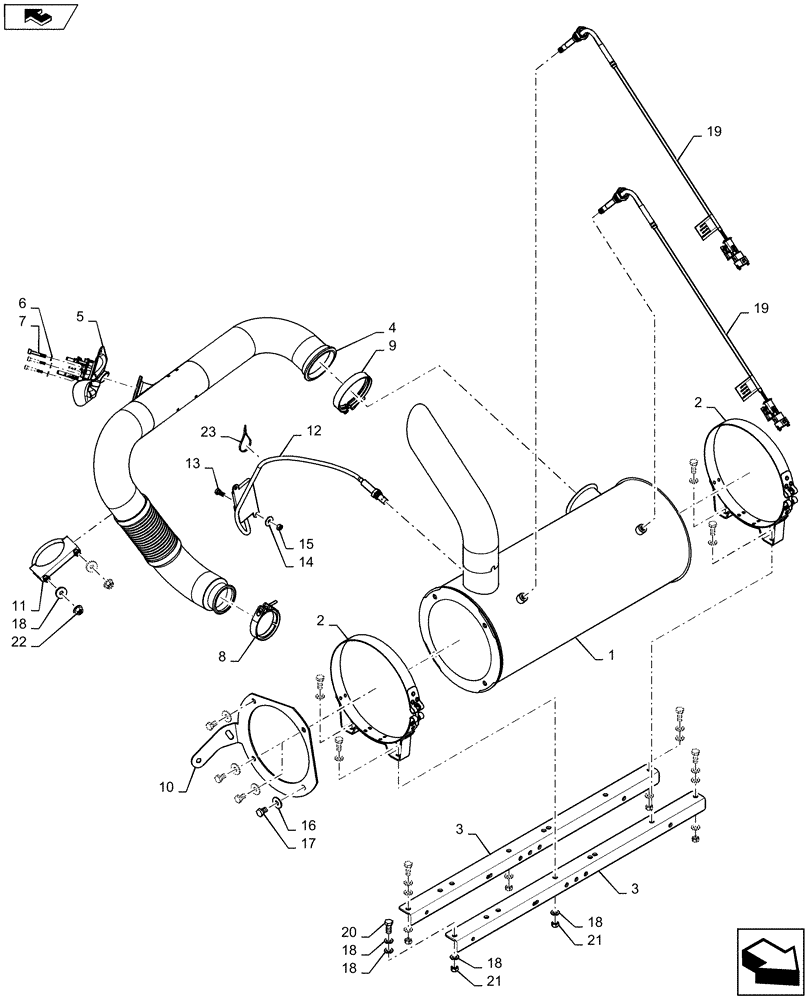

Запчасти Case IH 2240 (10.500.AO[01]) - EXHAUST SYSTEM (10) - ENGINE

1

84335944

MUFFLER

SCR

1шт.

2

8605331

CLAMP

Heavy Duty, Muffler

2шт.

3

84573108

MOUNT

SCR Muffler

2шт.

4

84546266

EXHAUST SYSTEM PIPE

SCR

1шт.

5

84247021

MODULE,Dosing Injector

DENOX Urea Dosing

1шт.

6

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

3шт.

7

84233542

HEX SOC SCREW

M6 x 40 Class 12.9

3шт.

8

84460193

CLAMP,81mm - 84mm

Retaining

1шт.

9

84180510

COLLAR CLAMP

1шт.

10

47362884

MOUNT

Exhuast

1шт.

11

BN2400371

CLAMP

Muffler

1шт.

12

84422745

SENSOR

NOX

1шт.

13

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

1шт.

14

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

M8 x 25 x 2, CST, DOR

1шт.

15

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

16

86981677

WASHER,11mm ID x 30mm OD x 2.5mm Thk

3шт.

17

86980398

BOLT,Hex, M10 - 1.5 x 16mm, Cl 8.8, DOR

3шт.

18

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2 mm, CST, DOR

20шт.

19

47478880

TEMPERATURE SENDER,50mm, Closed

Exhaust Temperature

2шт.

20

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

21

87344209

NUT,M10 x 1.5, Cl 10, DOR

8шт.

22

87343938

NUT

Flange 3/8-16 GR F Dor

2шт.

23

BN309265

CABLE

Wire Tie

1шт.

24

84365547

WASHER,8.4mm ID x 16mm OD x 2mm Thk

8.4 X 16 X 2 CST DOR

2шт.
