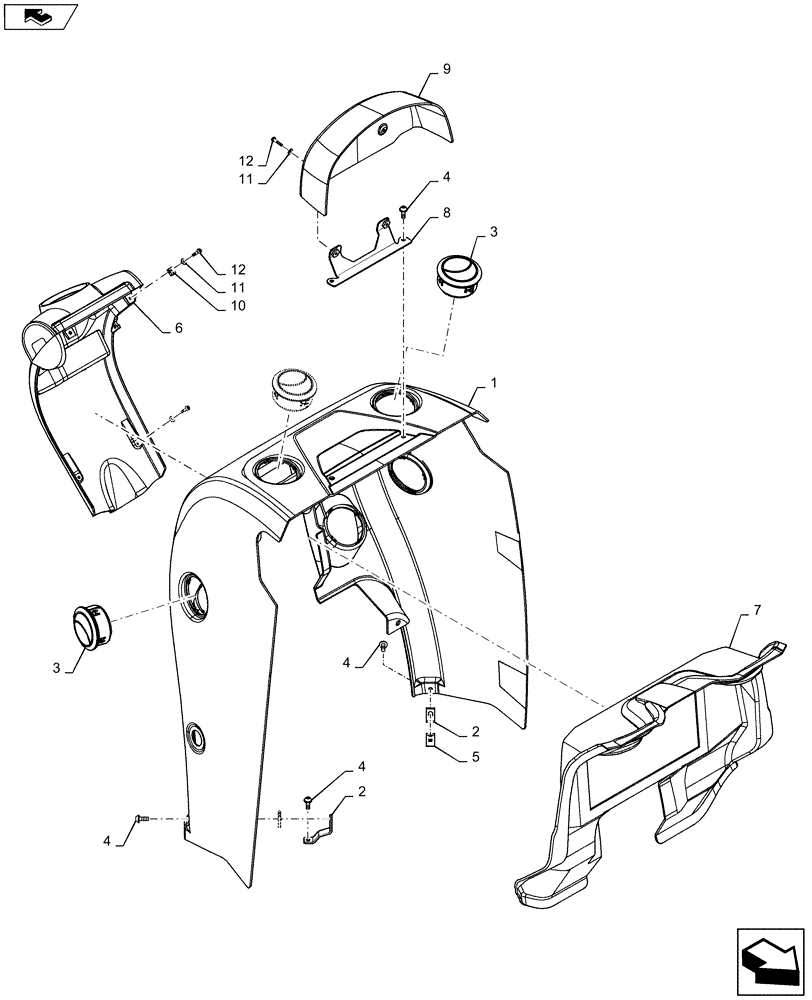

Запчасти Case IH 2240 (90.160.CD[01]) - STEERING COLUMN TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84312012

INSTRUMENT PANEL

Top and Sides

1шт.

2

84336087

BRACKET

Bottom

2шт.

3

82022331

VENT

HVAC

10шт.

4

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

11шт.

5

14371774

SPRING NUT,M6, U, 12mm long

2шт.

6

84322818

CONSOLE

Outer Column Cover

1шт.

7

84384761

COVER

Inner Column Cover

1шт.

8

84369822

BRACKET

Top Cover

1шт.

9

84314097

COVER

Top

1шт.

10

14372671

SPRING NUT,M4.2, U, 12.4mm long

6шт.

11

895-30101

WASHER,M5 x 10 x 1

8шт.

12

84183818

SCREW,Torx Pan HD, M4 x 23.1mm, Cl 4.8

8шт.
