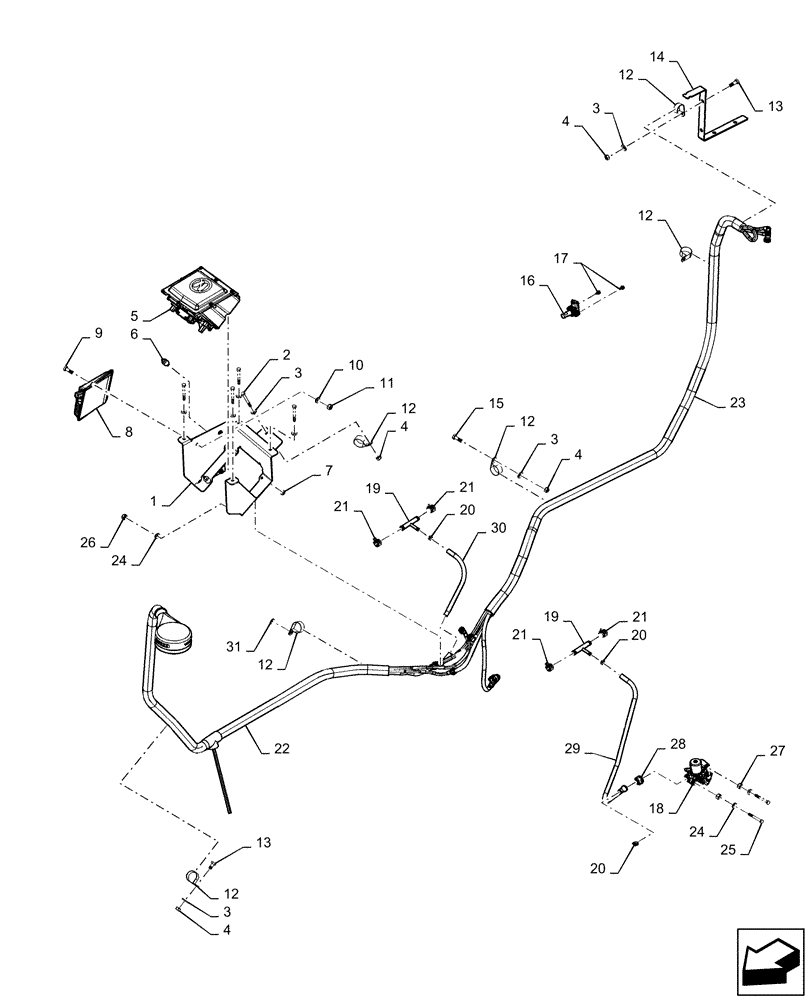

Запчасти Case IH 2240 (10.500.AD[02]) - HEATED DEF LINES ASN YDT036138 (10) - ENGINE

1

47499802

MOUNT

Supply Module

1шт.

2

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

5шт.

3

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

14шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

9шт.

5

84246892

MODULE

Supply

1шт.

84247272

FILTER,In-Line

DEF, For Ref 5

1шт.

84254852

FILTER

DEF, For Ref 5

1шт.

6

84324608

ISOLATOR,20mm OD x 52mm L

Supply Module

4шт.

7

322358

BELLEVILLE WASHER,M8 Bolt Size x 18mm OD x 1.4mm Thk

4шт.

8

84383005

CONVERTER,12V To 24V

12v - 24v

1шт.

9

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

4шт.

10

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

8шт.

11

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

4шт.

12

86637998

CLAMP,38.1mm, Coat, 10.3mm Bolt Hole, P Type

7шт.

13

86980399

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

2шт.

14

47545798

BRACKET

DEF Lines

1шт.

15

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

16

87482355

SENSOR

1шт.

17

87698753

FLANGE BOLT,M6 x 12mm, Cl 10.9, Full Thd

2шт.

18

84151635

HEATER VALVE

24 Volt

1шт.

19

84381516

TEE

DEF Heater

2шт.

20

1348264C1

HOSE CLAMP

Spring

4шт.

21

1954736C1

HOSE CLAMP,#24

4шт.

22

84494970

HOSE

DEF Bundle, Heated, Tank

1шт.

23

84494971

HOSE

DEF Bundle, Heated, Dosing

1шт.

24

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

6шт.

25

86980387

BOLT,Hex, M8 x 70mm, Cl 8.8

M8 x 70, DOR

3шт.

26

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

27

86505868

SERRATED NUT,Hex, M8 x 1.25, Cl 8

4шт.

28

84182163

FITTING

Normaquick PS3

1шт.

29

84593690

HOSE

31" Long

1шт.

30

84178005

HOSE,9.52mm OD x 15.88mm OD x 430mm L

17" Long

1шт.

31

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

1шт.
