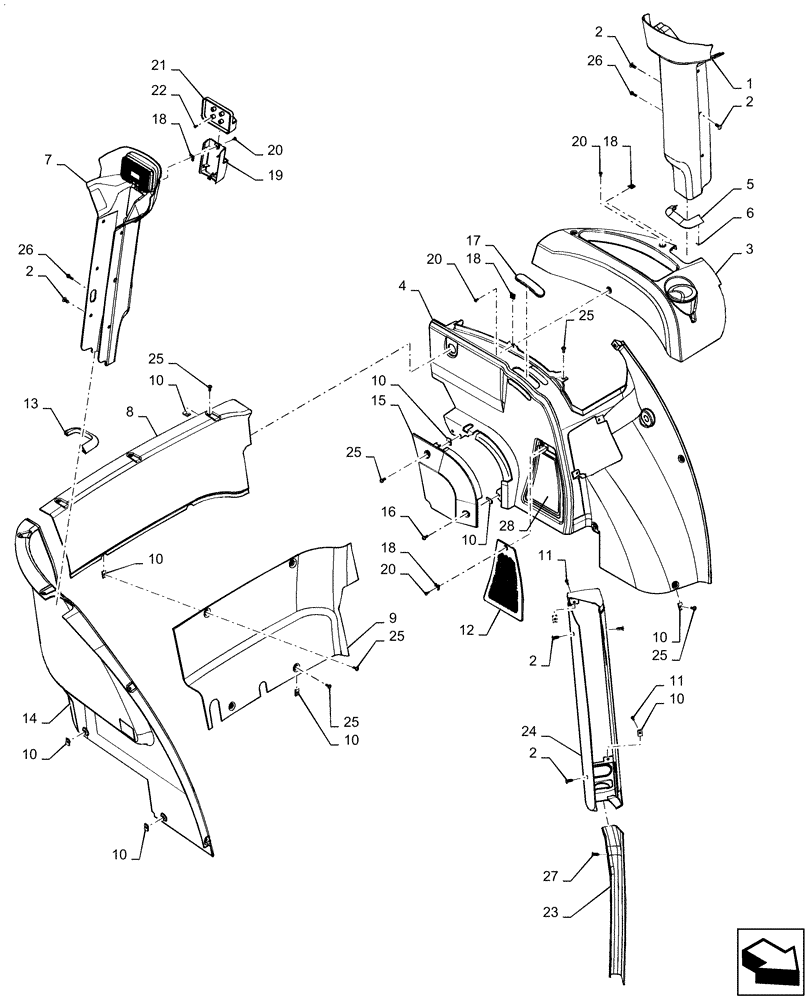

Запчасти Case IH 2240 (90.160.BX) - CAB INTERIOR TRIM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84310220

TRIM PANEL

LH B Post

1шт.

2

82023460

STUD,M7.85 x 19.50mm, Plastic

16шт.

3

84316095

TRIM PANEL

LH Tray

1шт.

4

84316097

TRIM PANEL

LH Lower

1шт.

5

84347880

RUBBER SEAL,123.8mm L

LH B Post

1шт.

6

14183474

PUSH-ON NUT,M4, Push

5шт.

7

84315058

TRIM

RH B Post

1шт.

8

84385180

PANEL

Top Rear Center

1шт.

9

84415978

PANEL

Center Cab

1шт.

10

14371774

SPRING NUT,M6, U, 12mm long

23шт.

11

87016541

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 1"

4шт.

12

84316040

FILTER COVER

LH, Incl 28

1шт.

13

84465281

RUBBER SEAL

RH B Post

1шт.

14

47520574

TRIM PANEL

Right Hand Fender

1шт.

15

84316574

TRIM

LH Hand Brake Cover

1шт.

16

87682398

SCREW,Torx, Round HD, M6 x 16mm, Cl 10.9

2шт.

17

84305703

PLUG

Hand Brake

1шт.

18

84291986

CLIP

Spring

6шт.

19

84315044

SUPPORT

Phone Storage

1шт.

20

84354393

PIN,18.8mm L

Pop In Screw Head

6шт.

21

84347910

COVER ASSY

Storage

1шт.

22

84193286

SCREW,Torx Pan Hd, M4 x 10mm, Cl 4.8

4шт.

23

84587874

COVER

ICU A Post Lower

1шт.

24

84588088

COVER

Right Hand A Post

1шт.

25

1983037

HEX SOC SCREW,Btn Hd Flg, M6 x 16mm, Cl 10.9

M6 x 16, Hex Head

13шт.

26

84479754

SCREW,Cross Rec Cheese Hd, M6 x 20mm, Cl 5.8

M6 x 20 Cheese Head

4шт.

27

81870039

FASTENER,M8 x 1.5 x 22mm

2шт.

28

84280229

CAB FILTER

LH

1шт.
