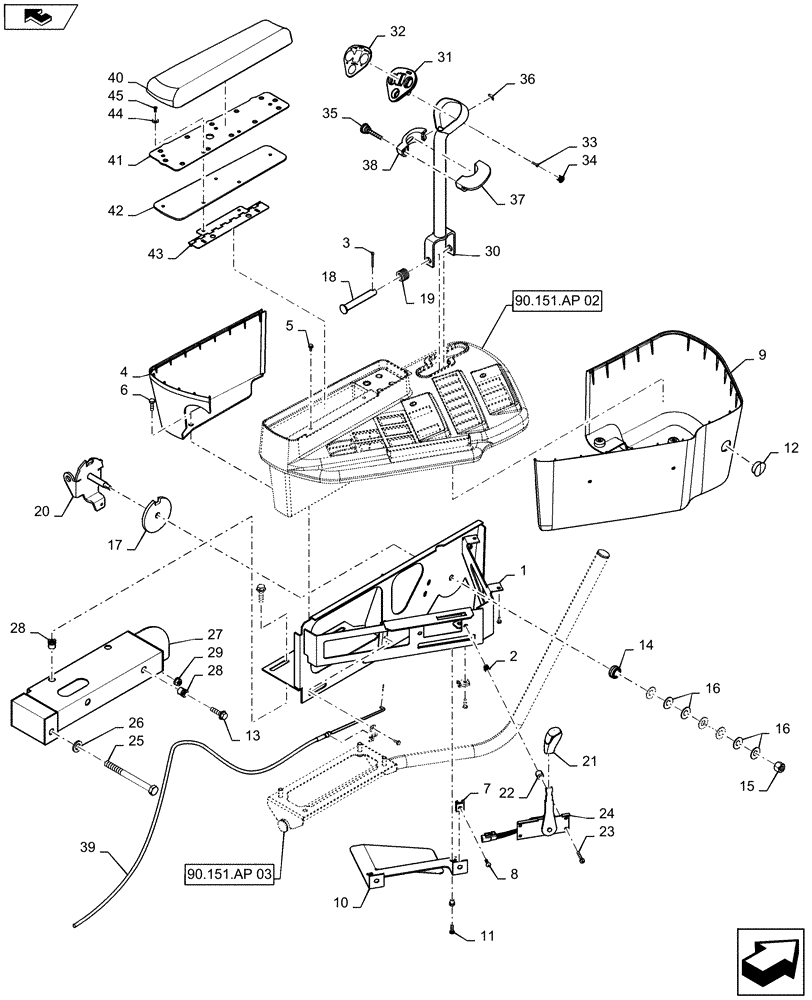

Запчасти Case IH 2240 (90.151.AP[01]) - CONSOLE, RH (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84392091

MOUNT

Console

1шт.

2

336304A1

INSERT

Threaded

6шт.

3

432-816

COTTER PIN,1/8" x 1"

1шт.

4

130412A1

COVER

Rear Console

1шт.

5

87343621

SCREW,Hex Wshr Hd, M4 x 10mm, Cl 4.9, Full Thd

4шт.

6

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

7

131-642

SPRING NUT,Tinn, U, #10

4шт.

8

86900238

SELF-TAP SCREW,Phillips Drive, Pan HD, #10 - 16 x 3/4"

4шт.

9

87270585

COVER

Outer

1шт.

10

87270759

PLATE

Block Off

1шт.

11

87343600

SCREW,Phil Pan Hd, M5 x 16mm, Cl 4.8, Full Thd

2шт.

12

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

13

86981482

BOLT,Hvy Hex Flg, M8 x 30mm, Cl 8.8, Full Thd

M8 x 30 Flange Head

4шт.

14

159688R91

THRUST BEARING

Propel Lever

1шт.

15

231-1447

NUT,7/16"-14, GB

1шт.

16

1994980C1

BELLEVILLE WASHER

Propel Lever

6шт.

17

251090A1

THRUST WASHER

Propel Lever

1шт.

18

27-8343

CLEVIS PIN,12.7mm OD x 87.33mm L

Propel Lever

1шт.

19

128593A1

SPRING

Propel Lever

1шт.

20

47383025

SUPPORT

Propel Lever

1шт.

21

134071A1

KNOB

Throttle

1шт.

22

87271789

SPACER

Nylon

4шт.

23

87343612

SCREW,Phil Pan Hd, M5 x 30mm, Cl 4.8, Full Thd

4шт.

24

87270767

THROTTLE

Electric

1шт.

25

814-12130

BOLT,Hex, M12 x 1.75 x 130mm, Cl 8.8

1шт.

26

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

27

87270590

MOUNTING PLATE

Console

1шт.

28

408566A1

INSERT,M8

Threaded

8шт.

29

87344227

SERRATED NUT

Flange, M8

1шт.

30

113314A2

CONTROL LEVER

Propel Lever

1шт.

31

87271796

PLATE

Propel Lever

1шт.

32

84491025

DECAL

Propel Lever

1шт.

33

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

Propel Lever

1шт.

34

282056A1

PLUG

Propel Lever

1шт.

35

86987885

KNOB

Palm Rest Screw

1шт.

36

1343962C1

CLIP,ELECTRICAL

Palm Rest

1шт.

37

116152A1

SUPPORT

RH Palm Rest

1шт.

38

116150A1

SUPPORT

LH Palm Rest

1шт.

39

47374622

CABLE

Propel Lever

1шт.

40

128971A2

ARMREST

Top

1шт.

41

128971A2

ARMREST

Mounting

1шт.

42

185546A1

PLATE

Armrest Backer

1шт.

43

128849A2

HINGE

Armrest

1шт.

44

87481591

LOCK WASHER

Armrest

5шт.

45

87481583

SCREW,M4 x 0.7 x 0.7mm

Armrest

5шт.
