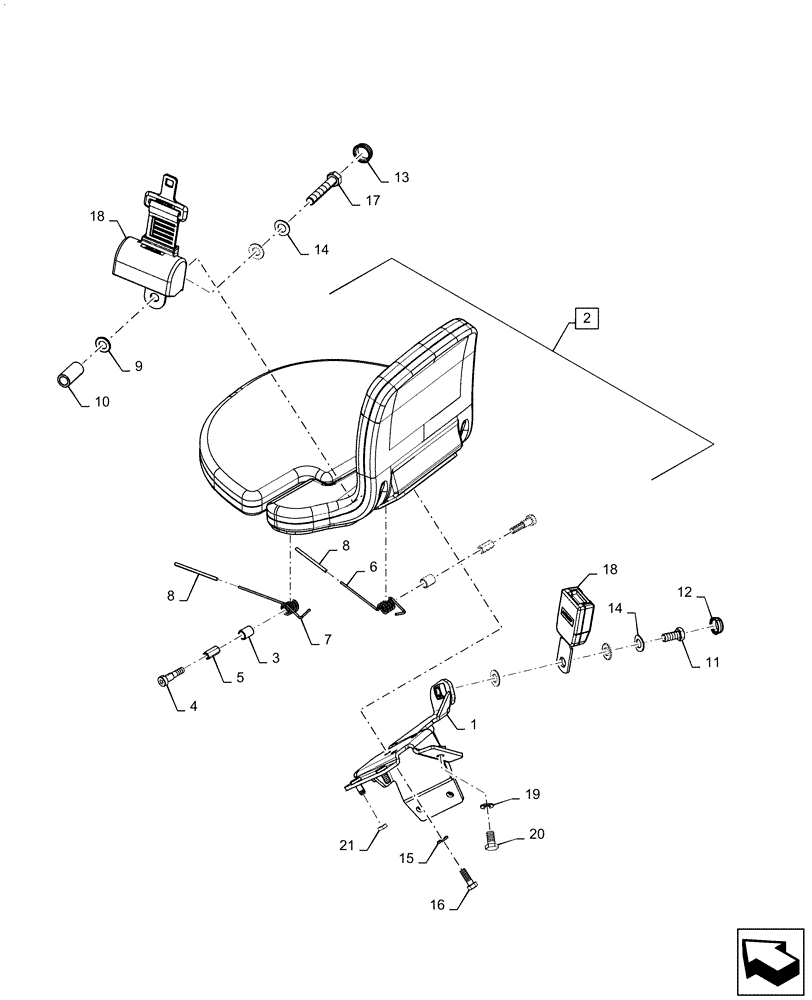

Запчасти Case IH 2240 (90.151.AC[01]) - SEAT, INSTRUCTOR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84295299

BRACKET

Instructor Seat

1шт.

2

84309988

INSTRUCTIONAL SEAT

Assembly Incl 3 - 8

1шт.

3

84412873

BUSHING

Seat Fold

2шт.

4

84412857

HEX SOC SCREW,Hex, M8 x 1.25 x 37mm

Seat Fold

2шт.

5

84412869

PROFILE,M8 x 1.25

Seat Fold

2шт.

6

84412864

SPRING

RH

1шт.

7

84412859

SPRING

LH

1шт.

8

84412870

SLEEVE

Spring

2шт.

9

84358390

WASHER,12.5mm ID x 25mm OD x 2mm Thk

Seat Belt

4шт.

10

84413190

SPACER,20mm ID x 42mm OD x 13mm L

Seat Belt

1шт.

11

5080270

SCREW,7/16 UNF x 25mm

1шт.

12

5080271

COVER,17.5mm ID

Nut Cover

1шт.

13

84409814

PLUG,M12 x 1.25

Bolt Cover

1шт.

14

84467678

WASHER,13mm ID x 24mm OD x 1.2mm Thk

Seat Belt Bolt

2шт.

15

84467674

WASHER,8.4mm ID x 17.5mm OD x 2.5mm Thk

Bracket

3шт.

16

84467669

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

Bracket

3шт.

17

84467683

BOLT,Hex, M12 x 1.25 x 70mm, Cl 8.8

Seat Belt Bolt

1шт.

18

84398541

SEAT BELT,49mm W x 1250mm L

Assembly, Buckle and Belt

1шт.

19

11193874

BELLEVILLE WASHER,M8 Bolt Size x 16mm OD x 1.4mm Thk

5шт.

20

16043324

BOLT,Hex, M8 x 1.25 x 18mm, Cl 8.8, Full Thd

3шт.

21

16100814

NUT,M8, Cl 8, DAC

2шт.
