(90.150.AC[01]) - CAB FRAMEWORK

Запчасти Case IH 2240 (90.150.AC[01]) - CAB FRAMEWORK (90) - PLATFORM, CAB, BODYWORK AND DECALS

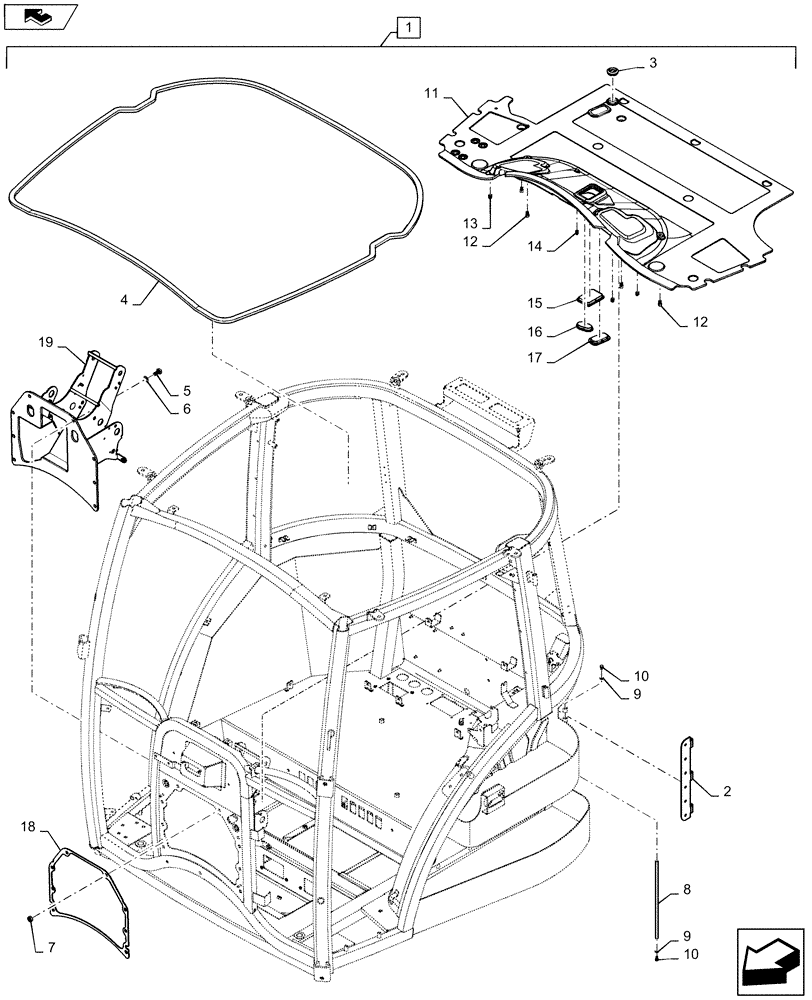

Схема запчастей Case IH 2240 - (90.150.AC[01]) - CAB FRAMEWORK (90) - PLATFORM, CAB, BODYWORK AND DECALS
8
19
15
home
5
1
18
13
6
17
10
9
10
12
3
4
9
2
14
16
7
12
11
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47546541

CAB

Service Cab, Incl 2-19, Roof, Trim, Glass, Contact Parts Tech For Details

1шт.

2

47428116

PIN

Hinge

1шт.

3

81862738

PLUG,M38 x 28 x 5mm

Floor

1шт.

4

84309657

STRIP-GASKET

Roof Seal

1шт.

5

15970621

BOLT,Hex, M10 x 1.25 x 22mm, Cl 8.8, Full Thd

8шт.

6

12601470

LOCK WASHER,B10 Wave Spring, 0.50mm ID x 21mm OD x 1mm, HDN

Spring

8шт.

7

12164721

NUT,M10 x 1.25, Cl 10

8шт.

8

84420983

PIN

Hinge

1шт.

9

322357

BELLEVILLE WASHER,M6 Bolt Size x 14mm OD x 1.3mm Thk

2шт.

10

378056

BOLT,Hex, M6 x 10mm, Cl 8.8

2шт.

11

84316786

CARPET

Platform

1шт.

12

84385705

THREADED INSERT,Stud, M6

Stud, M6

4шт.

13

84316158

THREADED INSERT,M6

M6

4шт.

14

84338494

THREADED INSERT,M5

M5

1шт.

15

47381868

PLUG

Platform

1шт.

16

47381870

PLUG

Slot

1шт.

17

47381873

PLUG

Rear Slot

1шт.

18

84265757

RUBBER SEAL,3mm Thk

Pedal Support

1шт.

19

84373921

SUPPORT

Pedal

1шт.
