(90.118.BM[01]) - BOOM MOUNTED REAR VIEW MIRROR

Запчасти Case IH 2240 (90.118.BM[01]) - BOOM MOUNTED REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS

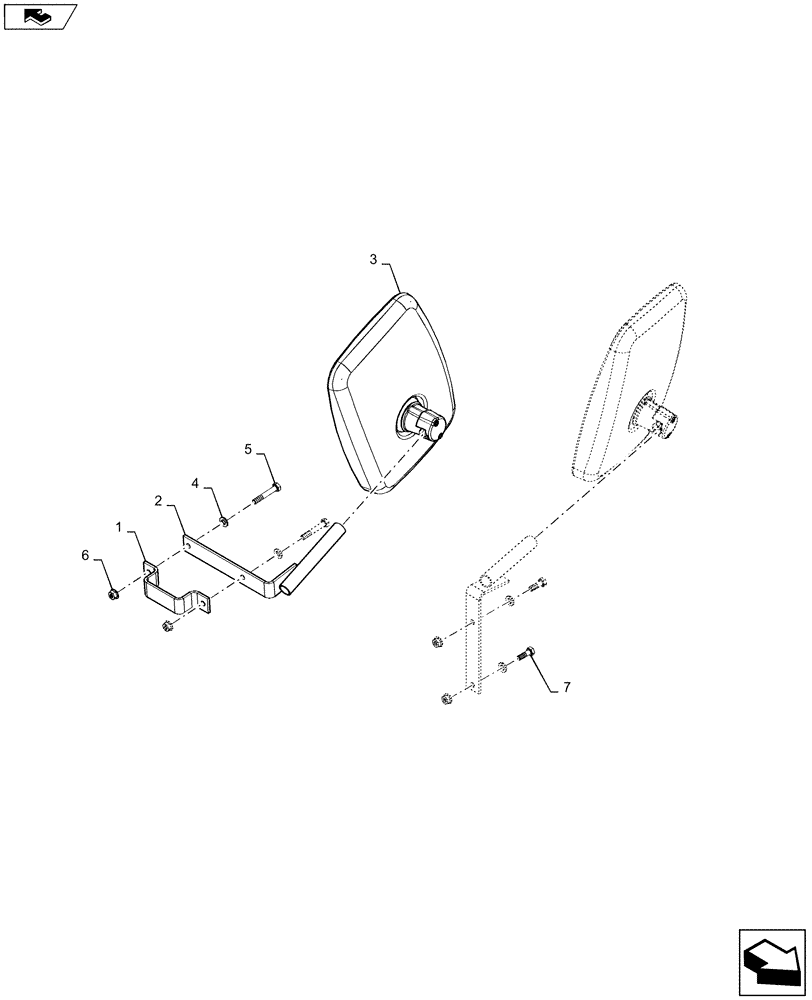

Схема запчастей Case IH 2240 - (90.118.BM[01]) - BOOM MOUNTED REAR VIEW MIRROR (90) - PLATFORM, CAB, BODYWORK AND DECALS
1
3
2
4
7
home
6
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47402825

SUPPORT

Bracket

1шт.

2

47402829

SUPPORT

Mirror Arm

2шт.

3

87350494

MIRROR ASSY.,240mm x 329mm

Manual Head

2шт.

4

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

4шт.

5

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

6

86981461

FLANGE NUT,M8 x 1.25, Cl 8

4шт.

7

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.
