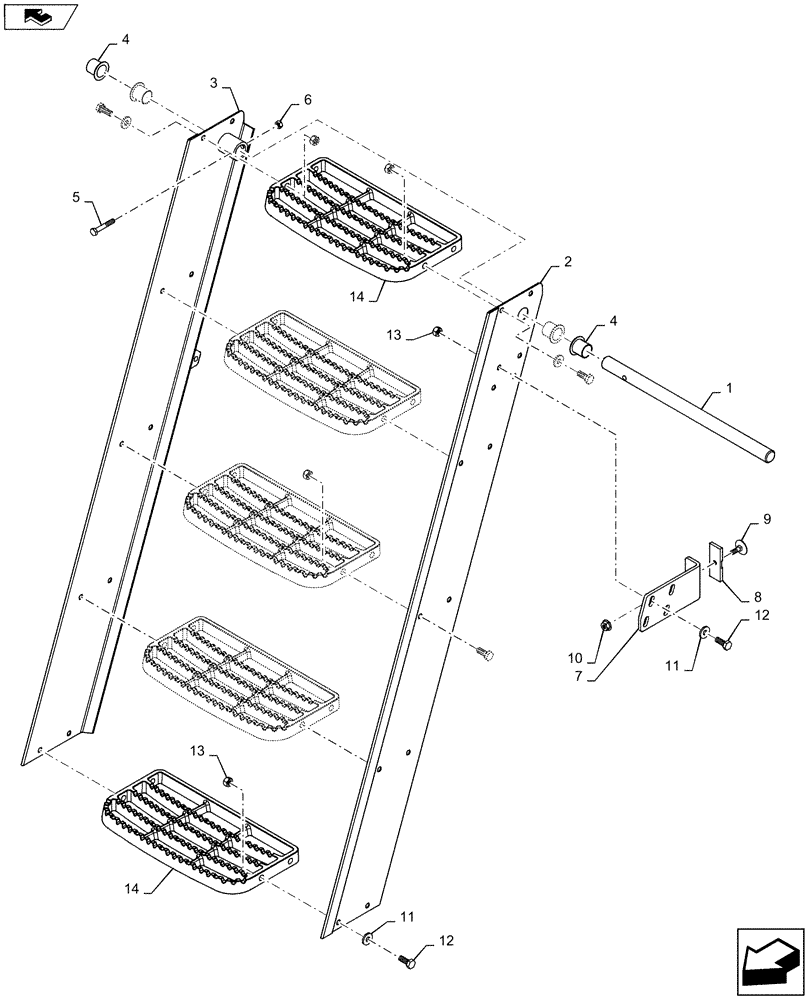

Запчасти Case IH 2240 (90.118.AE[02]) - OPERATORS LADDER ASN YDT036000 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

BN320322

PIN,25.4mm OD x 444mm L

Pivot

1шт.

2

47483291

SUPPORT

LH Ladder Side

1шт.

3

47483302

SUPPORT

RH Ladder Side

1шт.

4

BN321159

BUSHING,25.44mm ID x 27.77mm OD x 26.54mm L

Pivot

4шт.

5

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

1шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

7

BN323392

STOP

Ladder

1шт.

8

BN320307

PAD

Ladder Stop

1шт.

9

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

1шт.

10

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

1шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

28шт.

12

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

28шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

28шт.

14

87270245

STEP

Aluminum

6шт.
