Запчасти Case IH 2240 (90.118.AC[03]) - REAR PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

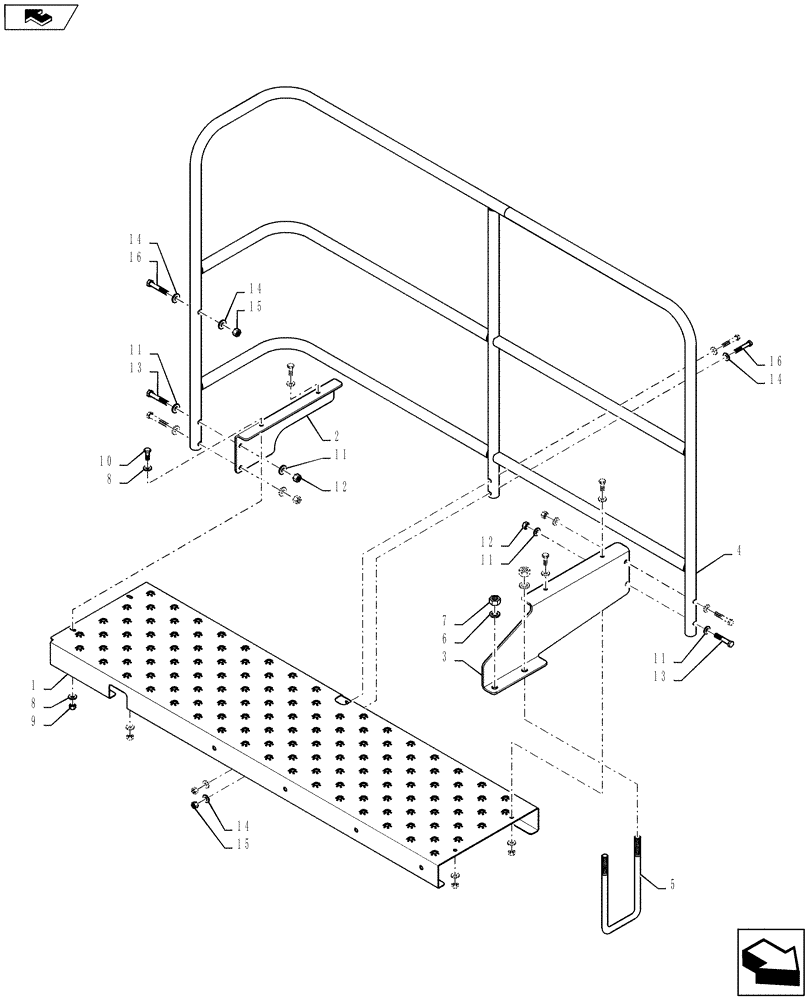

Схема запчастей Case IH 2240 - (90.118.AC[03]) - REAR PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS
13
4
16
12
home
11
9
11
5
13
11
3
6
16
15
14
11
2
14
12
8
14
10
14
15
1
8
7

Артикул

Название

Примечание

Количество

1

84330441

STEEL PLATE

Rear Walkway

1шт.

2

84330452

STEEL PLATE

Rear Walkway Mount, Rear

1шт.

3

84330458

SHEET METAL

Rear Walkway Mount, Front

1шт.

4

84323934

HANDRAIL

Rear Walkway

1шт.

5

84363128

U-BOLT

M16 - 2, 250mm Long, 110mm Inner, ZNC

1шт.

6

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

2шт.

7

87344007

LOCK NUT

2шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

4шт.

10

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

11

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

13

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

4шт.

14

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

6шт.

15

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

3шт.

16

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

3шт.

Выбрано товаров: 16
