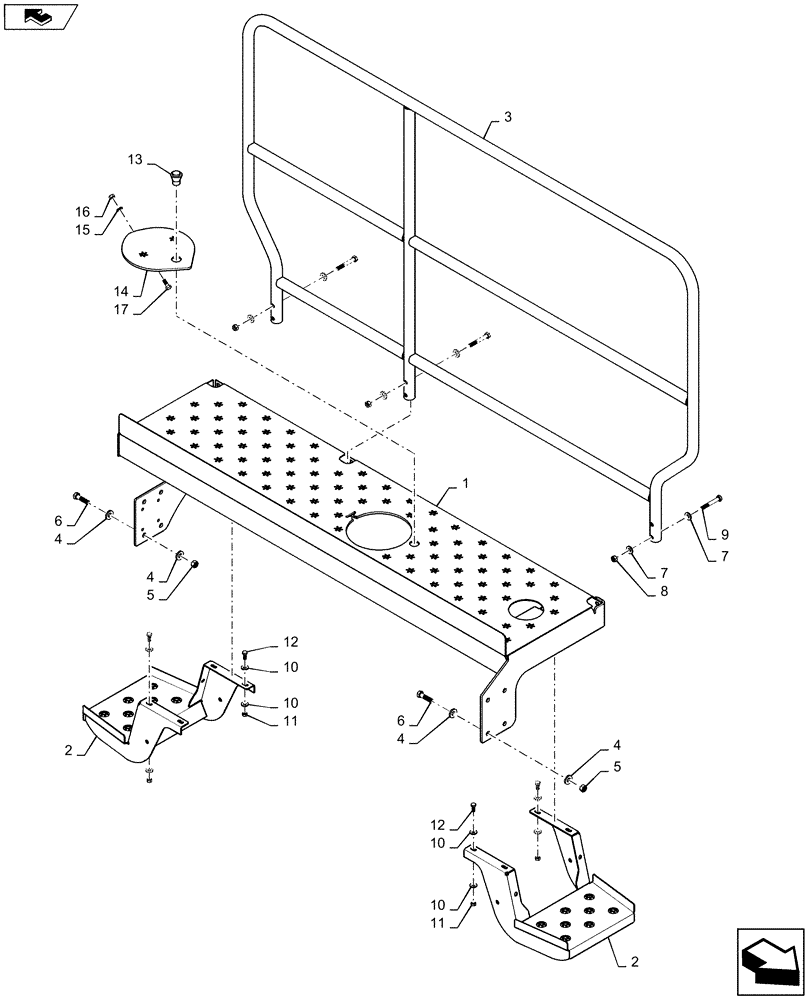

Запчасти Case IH 2240 (90.118.AC[02]) - MID PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47649083

WALKWAY

Mid Walkway

1шт.

2

47534096

STEP

Walkway

2шт.

3

84329328

HANDRAIL

Mid Walkway

1шт.

4

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

16шт.

5

87344214

NUT,Hex, M12 - 1.75, Cl 8.8, DOR

8шт.

6

86980424

BOLT,Hex, M12 x 1.75 x 45, Cl 8.8, DOR

8шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

12шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

6шт.

9

86980406

BOLT,Hex, M10 x 1.5 x 60mm, Cl 8.8

Hex, M10 - 1.5 x 70mm, Class 8.8, DOR

6шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

16шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

8шт.

12

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

8шт.

13

87270792

LATCH

Magnetic

1шт.

14

47649838

COVER

Walkway, Foam

1шт.

15

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR, HTS

1шт.

16

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

1шт.

17

86980358

BOLT,Hex, M6 - 1 x 12mm, Cl 8.8, DOR

1шт.
