Запчасти Case IH 2240 (90.118.AC[01]) - FRONT PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS

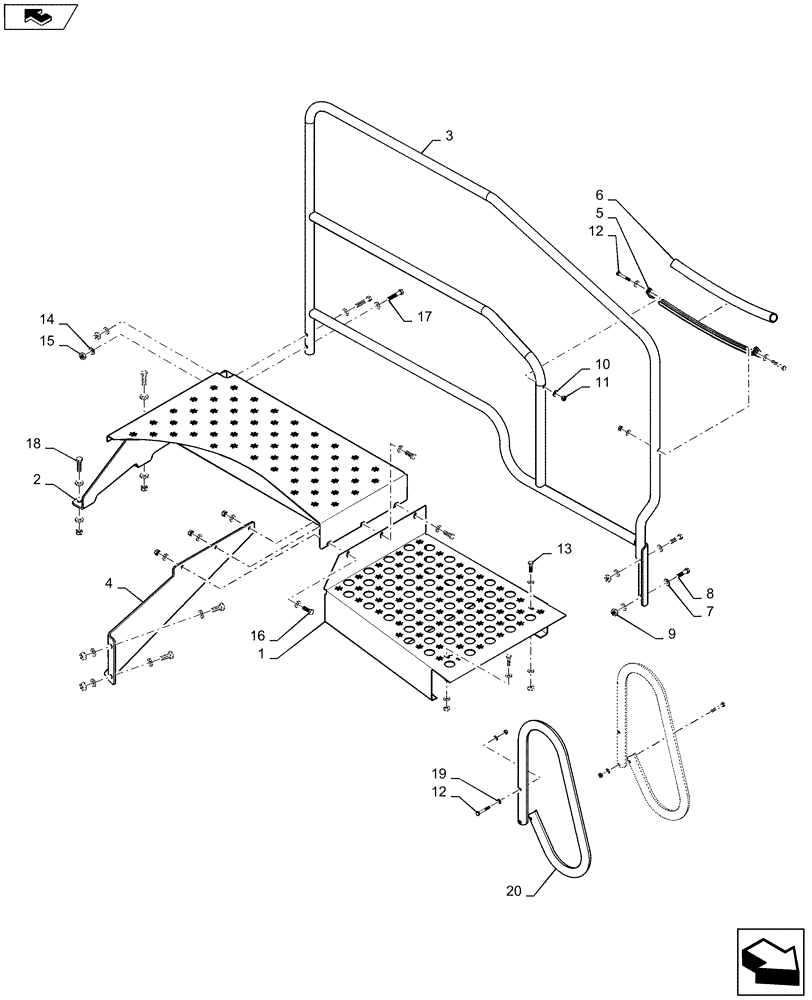

Схема запчастей Case IH 2240 - (90.118.AC[01]) - FRONT PLATFORM (90) - PLATFORM, CAB, BODYWORK AND DECALS
9
3
10
16
13
home
12
1
15
19
6
12
4
17
7
14
20
5
11
18
2
8

Артикул

Название

Примечание

Количество

1

84330446

STEEL PLATE

Front Lower Walkway

1шт.

2

47505747

WALKWAY

Front Upper

1шт.

3

47378515

HANDRAIL

Front Walkway

1шт.

4

84330461

STEEL PLATE

Front Walkway Support

1шт.

5

47546468

CHAIN

Handrail

1шт.

6

BN321652

HOSE

Hose Used as Handrail Chain Cover, cut to lenght.

1шт.

7

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

9шт.

8

86980425

BOLT,Hex, M12 - 1.75 x 50mm, Cl 8.8, DOR

M12 - 1.75 x 50mm, Class 8.8, DOR

2шт.

9

87344214

NUT,Hex, M12 - 1.75, Cl 8.8, DOR

3шт.

10

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

8шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

12

87610713

BOLT,Hex, M8 x 55mm, Cl 8.8

8шт.

13

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

14

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

10шт.

15

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

5шт.

16

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

3шт.

17

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

Hex, M10 - 1.5 x 70mm, Class 8.8, DOR

2шт.

18

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

19

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

12шт.

20

84128609

HANDRAIL

Ladder

2шт.

Выбрано товаров: 20
