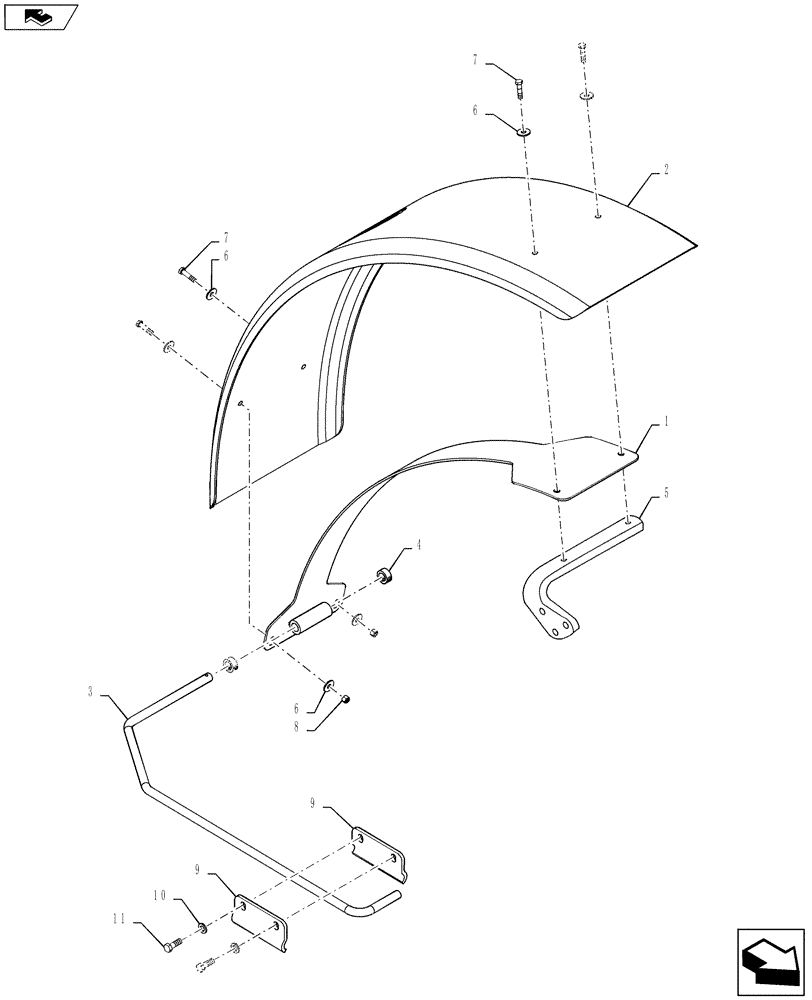

Запчасти Case IH 2240 (90.116.AC[02]) - LH FENDER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84219771

SUPPORT

Plate

1шт.

2

84485478

FENDER

Long, Large Holes, 16 1/4" Wide

1шт.

3

84314815

ROD

Fender

1шт.

4

84216461

COLLAR

Locking

2шт.

5

84314821

FIXING PLATE

Mount, Left Fender

1шт.

6

86981677

WASHER,11mm ID x 30mm OD x 2.5mm Thk

6шт.

7

87342769

BOLT

3/8 - 16 x 1-1/2, Grade 5, DOR

4шт.

8

87343999

LOCK NUT

Lock, 3/8 - 16, Grade 5, DOR

2шт.

9

84566834

MOUNT

Fender

2шт.

10

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

2шт.

11

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

M12 x 35, DOR

2шт.
