(10.500.AA[01]) - HEATED DEF TANK MOUNTING

Запчасти Case IH 2240 (10.500.AA[01]) - HEATED DEF TANK MOUNTING (10) - ENGINE

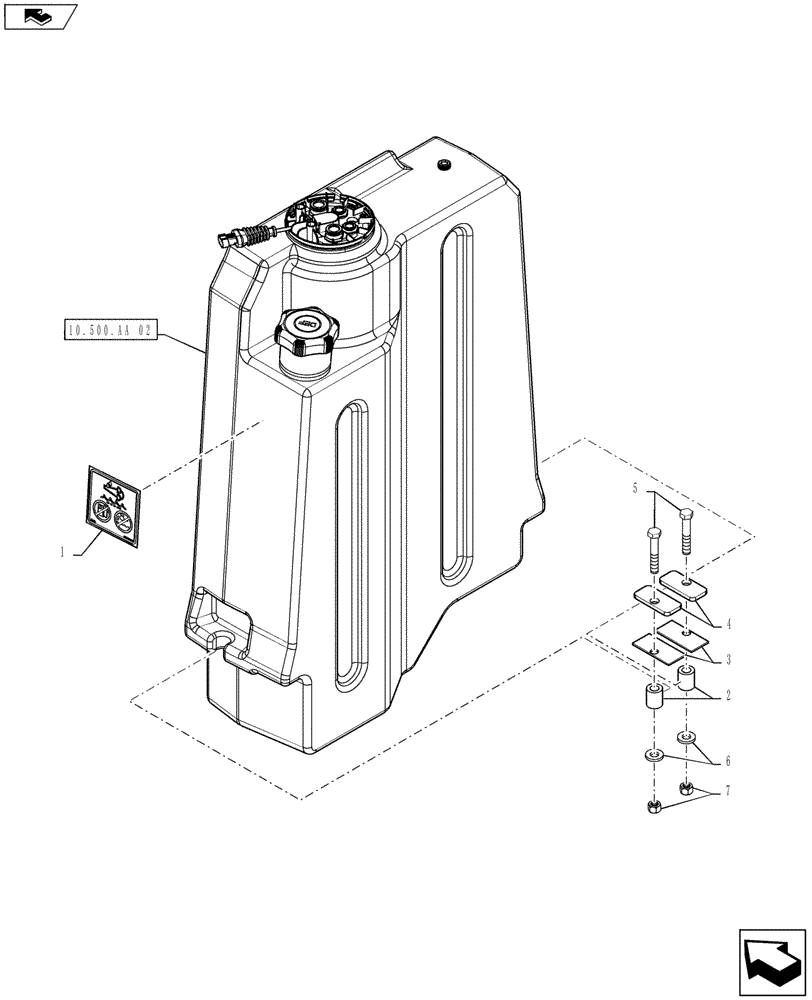

Схема запчастей Case IH 2240 - (10.500.AA[01]) - HEATED DEF TANK MOUNTING (10) - ENGINE
2
4
home
1
7
3
10.500.aa 02
5
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84284896

DECAL,DEF TANK identification label

DEF Tank

1шт.

2

BN67653

BUSHING

DEF Tank Mounting

2шт.

3

84237916

RUBBER MOUNTING

DEF Tank

2шт.

4

BN67652

PLATE

Tank Hold Down

2шт.

5

86980427

BOLT,Hex, M12 x 1.75 x 70mm, Cl 8.8

2шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

2шт.

7

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

2шт.
