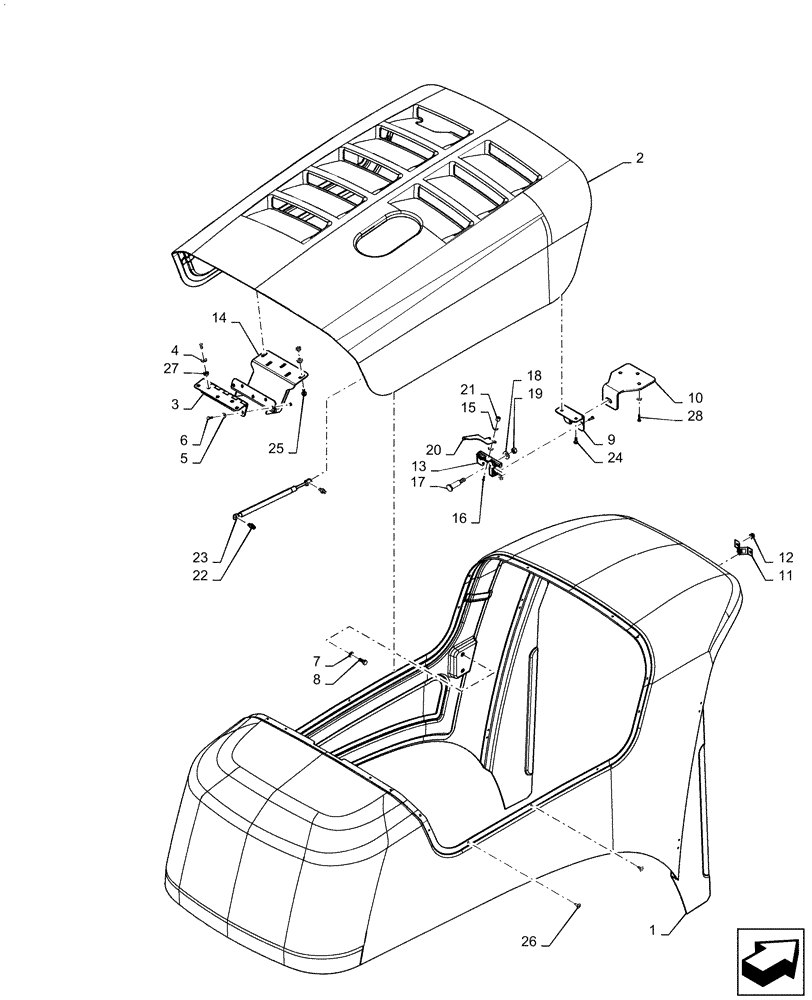

Запчасти Case IH 2240 (90.100.AV[02]) - ENGINE HOOD ASSY SN YDT03139 AND AFTER (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

47515574

ENGINE HOOD

Assembly

1шт.

2

84468501

HOOD

Access Cover Assembly

1шт.

3

47511068

HINGE

Flat

1шт.

4

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

7шт.

5

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

12шт.

6

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

9шт.

7

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

8шт.

8

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

9

47600294

MOUNTING PLATE

Latch Mount

1шт.

10

84469393

PLATE

Latch Mount

1шт.

11

1961435C1

LATCH

Cab Skirt Spring

2шт.

12

86984400

RIVET,Pop, 1/8" x .400", Stainless

4шт.

13

84175923

LATCH

Hood

1шт.

14

47518552

PLATE

Hinge

1шт.

15

87529300

WASHER,4.4mm ID x 9mm OD x 0.8mm Thk

4.4 x 9 x 0.8MM, DOR

4шт.

16

614-4016

BOLT,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

2шт.

17

301081A1

BOLT

Striker

1шт.

18

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

1шт.

19

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

1шт.

20

84469408

BRACKET

Latch Lever

1шт.

21

87344029

NUT,Prev Torque, M4, 0.7 Pitch, Cl 8, DOR

2шт.

22

85828137

PIN,M10 x 14mm L

Stud Ball

4шт.

23

47636382

GAS STRUT

2шт.

24

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

25

86511479

BOLT,Hex Flg, M8 x 20mm

5шт.

26

87268898

RIVET

Nylon, Black

22шт.

27

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

28

86980361

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

3шт.
