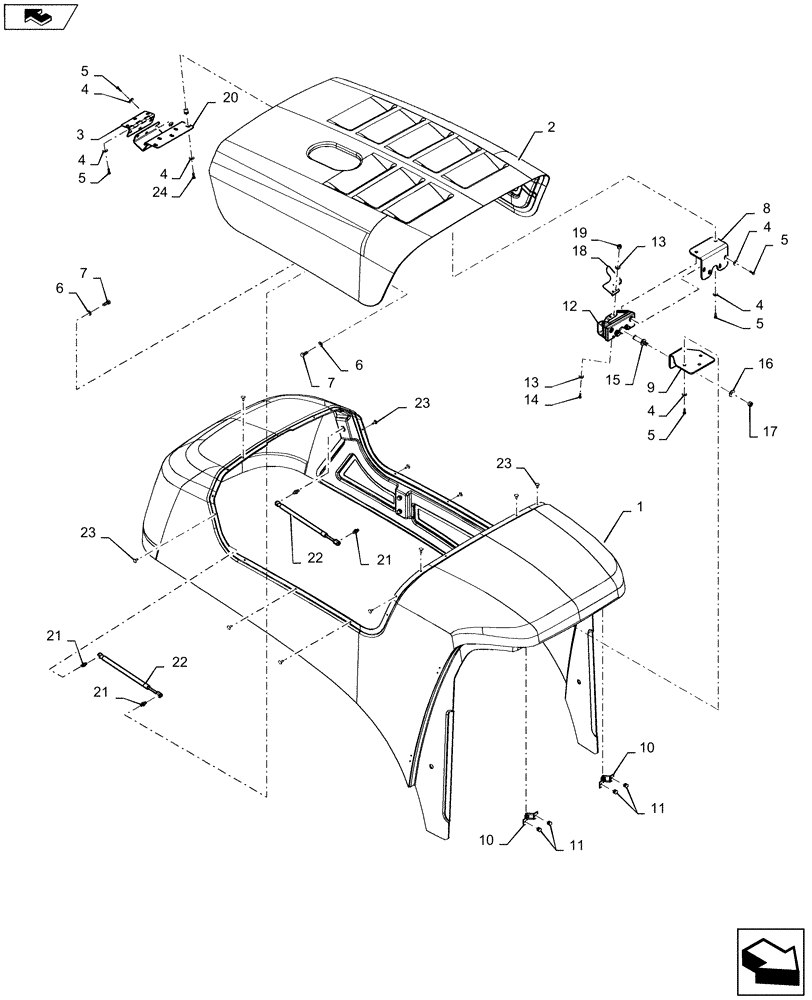

Запчасти Case IH 2240 (90.100.AV[01]) - ENGINE HOOD ASSY BSN YDT03139 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84468504

HOOD

Assembly

1шт.

2

84468501

HOOD

Access Cover Assembly

1шт.

3

87738661

FIXED HINGE

Flat

1шт.

4

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

15шт.

5

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

15шт.

6

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

8шт.

7

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

8шт.

8

47485840

MOUNTING PLATE

Latch Mount

1шт.

9

84469393

PLATE

Latch Mount

1шт.

10

1961435C1

LATCH

Cab Skirt Spring

2шт.

11

86637656

RIVET,Pop, 1/8" x .337"

4шт.

12

84175923

LATCH

Hood

1шт.

13

87529300

WASHER,4.4mm ID x 9mm OD x 0.8mm Thk

4.4 x 9 x 0.8MM, DOR

8шт.

14

614-4016

BOLT,Hex, M4 x 0.7 x 16mm, Cl 8.8, Full Thd

2шт.

15

301081A1

BOLT

Striker

1шт.

16

87528989

WASHER,12.2mm ID x 30mm OD x 2.5mm Thk

1шт.

17

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

1шт.

18

84469408

BRACKET

Latch Lever

1шт.

19

87344029

NUT,Prev Torque, M4, 0.7 Pitch, Cl 8, DOR

2шт.

20

87344029

NUT,Prev Torque, M4, 0.7 Pitch, Cl 8, DOR

1шт.

21

85828137

PIN,M10 x 14mm L

Stud Ball

4шт.

22

47410468

GAS STRUT

2шт.

23

87268898

RIVET

Nylon, Black

22шт.

24

86511442

BOLT,Hex Serr, M6 x 1 x 20mm

5шт.
