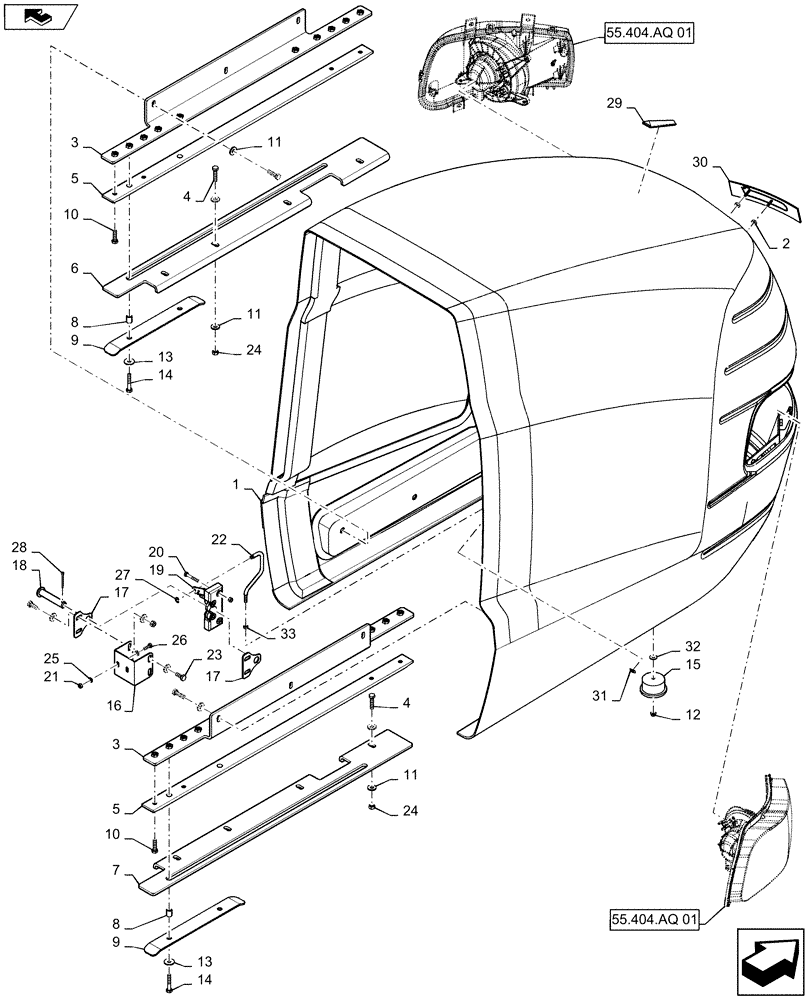

Запчасти Case IH 2240 (90.100.AU[01]) - FRONT FUEL HOOD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

84499849

HOOD

Fuel Tank

1шт.

2

87301264

SPACER, RING

Rubber

2шт.

3

84510059

BRACKET

Front Hood Support

2шт.

4

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

M8 x 35, CL 8, DOR

8шт.

5

47475774

WEAR STRIP

Front Hood Support

2шт.

6

84367271

FIXING PLATE

LH Hood Mount

1шт.

7

84367272

FIXING PLATE

RH Hood Mount

1шт.

8

84600277

SPACER,8.48mm ID x 12.7mm OD x 16.8mm L

1/2" x 0.660 Tube, DOR

4шт.

9

84355550

SIDE PLATE

Hood Slide

2шт.

10

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

14шт.

11

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

38шт.

12

86511444

FLANGE NUT,Hex, M6 x 1

1шт.

13

87528983

WASHER,8.4mm ID x 25mm OD x 2mm Thk

8.4 x 25 x 2mm, DOR

4шт.

14

86980384

BOLT,Hex, M8 x 45mm, Cl 8.8

M8 x 45, CL 8, DOR

4шт.

15

47428195

KNOB

Hood Release

1шт.

16

47533322

MOUNT

Latch Pin

1шт.

17

BN324871

MOUNTING PLATE

Latch Pin Tab

2шт.

18

728-1680

CLEVIS PIN,M16 x 80

1шт.

19

318159A1

LATCH

Hood

1шт.

20

86980364

BOLT,Hex, M6 - 1 x 40mm, Cl 8.8, DOR

4шт.

21

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

6шт.

22

84355571

ROD

Latch

1шт.

23

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

24

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

25

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2mm

4шт.

26

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

27

11087776

CIRCLIP,Ext., M6, BLO

1шт.

28

733-4032

COTTER PIN,M4 x 32

1шт.

29

1968108C2

TRIM

Hood Sight

1шт.

30

87716229

EMBLEM

Hood

1шт.

31

87037458

PUSH-ON NUT,5/32"

2шт.

32

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6mm, DOR

1шт.

33

87698779

NUT

M6, CL10, DOR

1шт.
