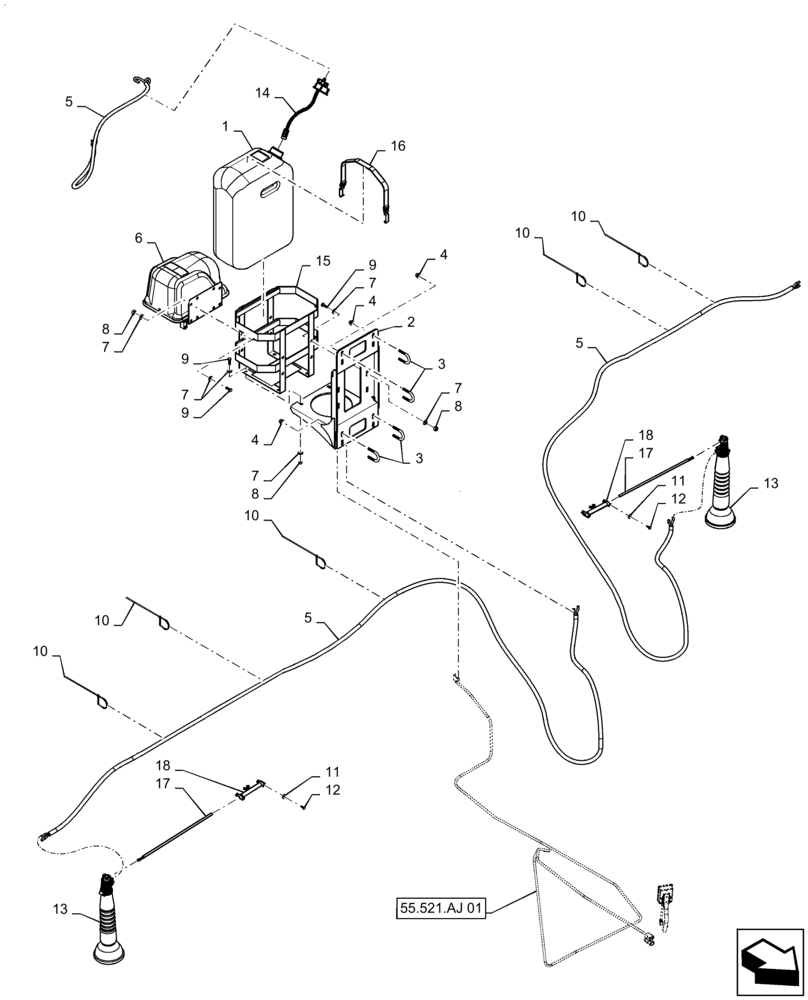

Запчасти Case IH 2240 (78.120.AG[01]) - FOAM MARKER (78) - SPRAYING

1

84420731

TANK

Foaming Liquid

1шт.

2

47481960

MOUNT

Tank

1шт.

3

87302138

U-BOLT

3/8" - 16 x 1-3/8" x 2-1/4"

4шт.

4

86521609

FLANGE NUT,Flg, 3/8"-16

8шт.

5

84420753

HOSE

Air / Liquid

2шт.

6

84420950

AIR COMPRESSOR

Valve Unit With Solenoid

1шт.

7

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

24шт.

8

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

9

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

12шт.

10

BN570007

STRAP

14-1/2"

47шт.

11

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

4шт.

12

86980358

BOLT,Hex, M6 - 1 x 12mm, Cl 8.8, DOR

4шт.

13

84420732

NOZZLE

Foam

2шт.

14

84420721

CAP

With Pressure Relief

1шт.

15

84423427

BASKET

Foam Tank

1шт.

16

47574152

STRAP

Tank, Foam Marker

1шт.

17

47576816

ROD

Adjustment

2шт.

18

47575903

MOUNT

Drop, With Hardware

2шт.
