(78.111.AE[03]) - RFM100 FLOWMETER GROUP, 3" PLUMBING

Запчасти Case IH 2240 (78.111.AE[03]) - RFM100 FLOWMETER GROUP, 3" PLUMBING (78) - SPRAYING

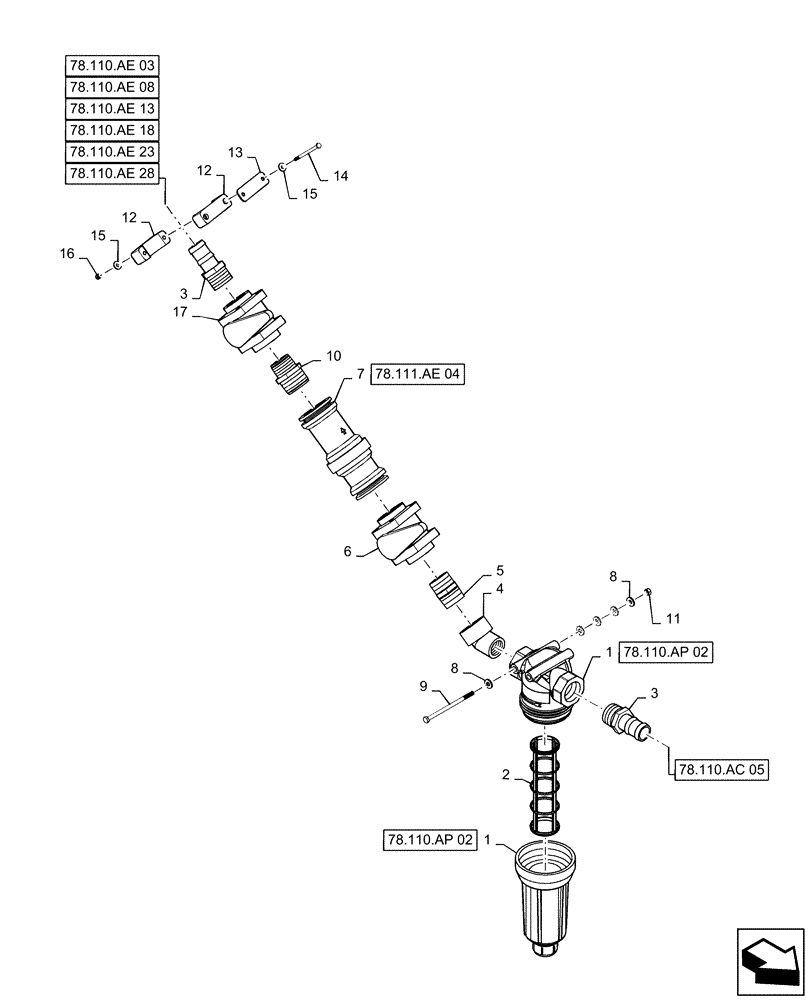

Схема запчастей Case IH 2240 - (78.111.AE[03]) - RFM100 FLOWMETER GROUP, 3" PLUMBING (78) - SPRAYING
12
2
78.110.ae 08
11
1
10
78.110.ap 02
78.110.ae 23
7
13
3
78.110.ae 18
78.110.ae 28
15
16
78.110.ac 05
17
12
15
78.110.ae 03
6
1
9
8
78.111.ae 04
4
5
78.110.ap 02
78.110.ae 13
14
8
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84294058

FILTER STRAINER

Pre-Boom, 1-1/2 NPT, Poly

1шт.

See Figure 78.110.AP(02) For Service Parts

1шт.

2

84294060

FILTER SCREEN,30 Mesh

30 Mesh Screen

1шт.

3

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

4

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

1шт.

5

BN73722

NIPPLE, LUBE,1-1/2" Male NPT x 1-1/2" Male NPT, 6" Long

1-1/2" x 6", Poly

1шт.

6

BN73787

SLEEVE

Reducer, 2" x 1-1/2" NPT

1шт.

7

87265851

METER

Flowmeter, RFM 100

1шт.

See Figure 78.111.AE(04) For Service Parts

1шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

10шт.

9

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

10

BN73780

NIPPLE

Reducer, 2" NPT x 1-1/2" NPT, Poly

2шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

12

87480824

CLAMP

2" Hose

1шт.

13

409811

COVER

Mounting Plate

1шт.

14

87341834

BOLT,Hex, M6 - 1 x 100mm, Cl 8.8, DOR

2шт.

15

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

4шт.

16

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

17

BN322253

VALVE

Ball With Lever, 1-1/2" NPT, Poly

1шт.
