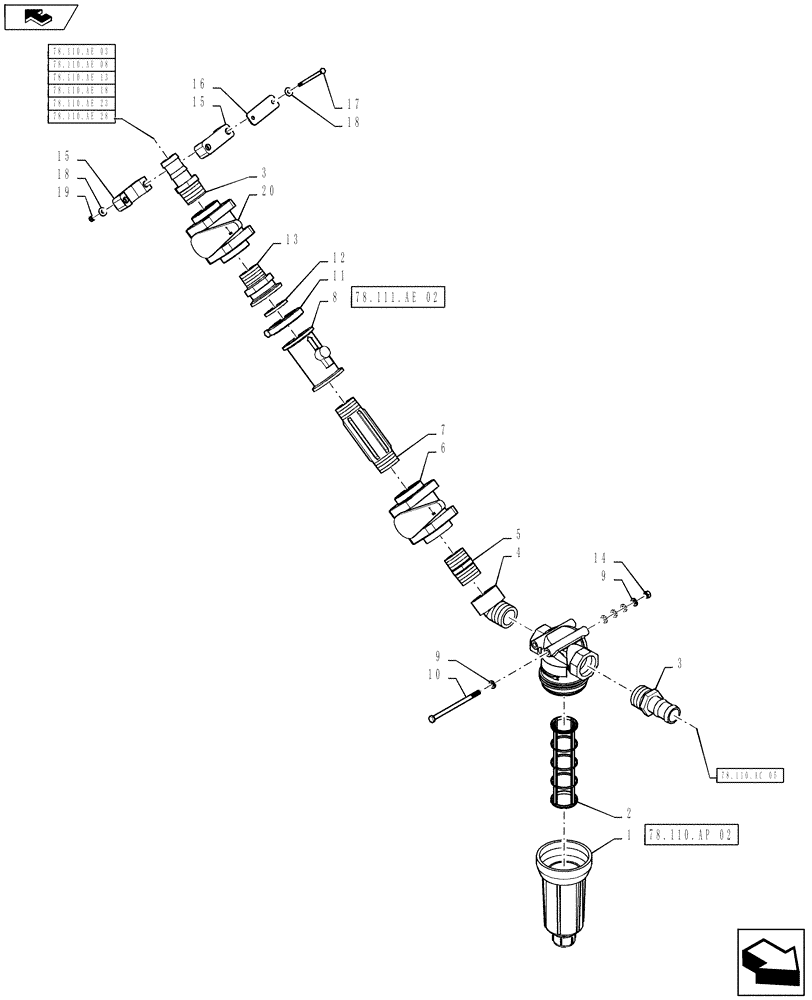

Запчасти Case IH 2240 (78.111.AE[01]) - RFM60 FLOWMETER GROUP, 2" PLUMBING (78) - SPRAYING

1

84294058

FILTER STRAINER

Pre-Boom, 1-1/2 NPT, Poly

1шт.

See Figure 78.110.AP(02) For Service Parts

1шт.

2

84294060

FILTER SCREEN,30 Mesh

30 Mesh Screen

1шт.

3

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

2шт.

4

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

1шт.

5

BN73732

LUBE NIPPLE

1-1/2" NPT x 4" NPT, Poly

1шт.

6

BN73738

COUPLING

1-1/2" Poly

1шт.

7

BN73722

NIPPLE, LUBE,1-1/2" Male NPT x 1-1/2" Male NPT, 6" Long

1-1/2" NPT x 6" Long, Poly

1шт.

8

87271267

MEASURING INSTRUMENT

Flowmeter, RFM 60P

1шт.

See Figure 78.111.AE(02) For Service Parts

1шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

10шт.

10

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

11

BN303199

CLAMP,2" Flange

2" Standard Flange

1шт.

12

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

1шт.

13

BN303190

FITTING,2" Flange x 1-1/2" NPT, Poly

2" Flange x 1-1/2" NPT, Poly

1шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

15

87480824

CLAMP

2" Hose

1шт.

16

409811

COVER

Mounting Plate

1шт.

17

87341834

BOLT,Hex, M6 - 1 x 100mm, Cl 8.8, DOR

2шт.

18

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

4шт.

19

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

20

BN322253

VALVE

Ball With Lever, 1-1/2" NPT, Poly

1шт.
