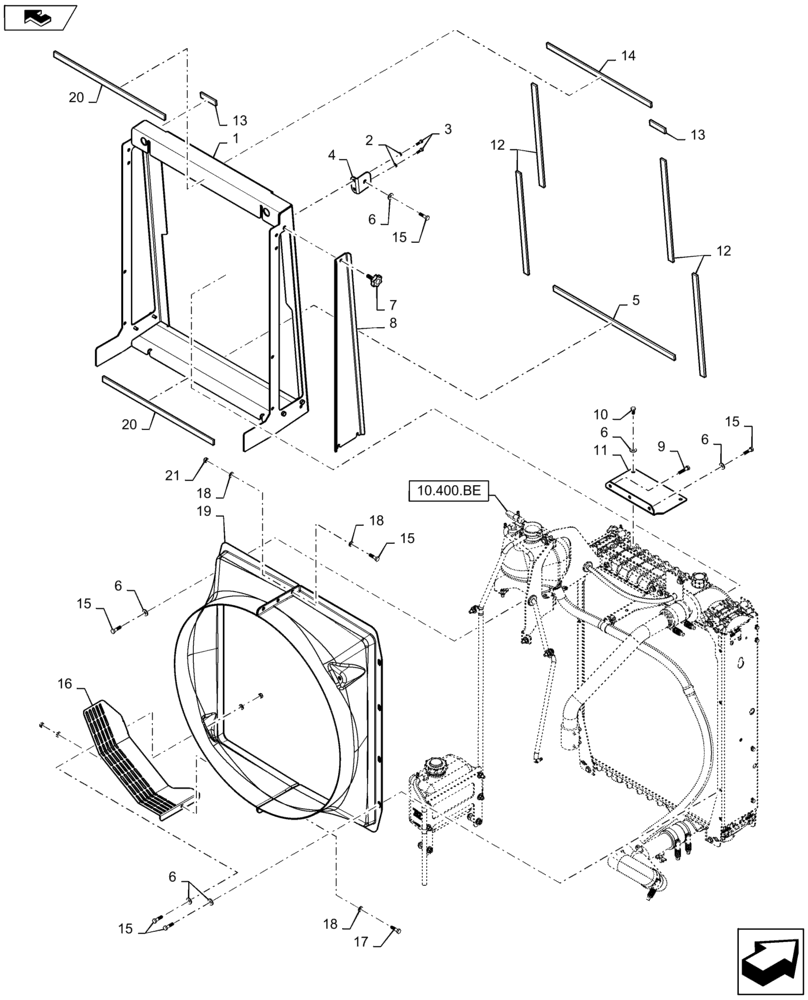

Запчасти Case IH 2240 (10.400.BF[01]) - RADIATOR FAN SHROUD (10) - ENGINE

1

47594343

FRAME

CAC Mount

1шт.

2

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2mm, DOR

12шт.

3

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

12шт.

4

84391647

BRACKET

CAC Mount

2шт.

5

BN29710

WEATHERSTRIP

CAC Seal, 50' Bulk Roll, Cut To Length Of 540mm

1шт.

6

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

54шт.

7

342417A1

KNOB

M8 x 1.25

2шт.

8

47599273

COVER

Side

2шт.

9

87342006

BOLT,Hex, M8 x 1.25 x 40mm, Cl 10.9, DOR

M8 x 40, CL 10.9, DOR

1шт.

10

86980378

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

2шт.

11

47593817

BRACKET

Radiator Top

1шт.

12

BN29710

WEATHERSTRIP

CAC Seal, 50' Bulk Roll, Cut To Length Of 412mm

4шт.

13

BN29710

WEATHERSTRIP

CAC Seal, 50' Bulk Roll, Cut To Length Of 66mm

2шт.

14

BN29710

WEATHERSTRIP

CAC Seal, 50' Bulk Roll, Cut To Length Of 464mm

1шт.

15

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

24шт.

16

84360488

GUARD

Fan

1шт.

17

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

3шт.

18

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2mm, DOR

12шт.

19

84357160

SHROUD

Fan

2шт.

20

BN29710

WEATHERSTRIP

CAC Seal, 50' Bulk Roll, Cut To Length Of 494mm

2шт.

21

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

21шт.

22

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

23

86980383

BOLT,Hex, M8 x 40mm, Cl 8.8

8шт.
