(78.111.AA[01]) - PRODUCT PUMP MOUNTING

Запчасти Case IH 2240 (78.111.AA[01]) - PRODUCT PUMP MOUNTING (78) - SPRAYING

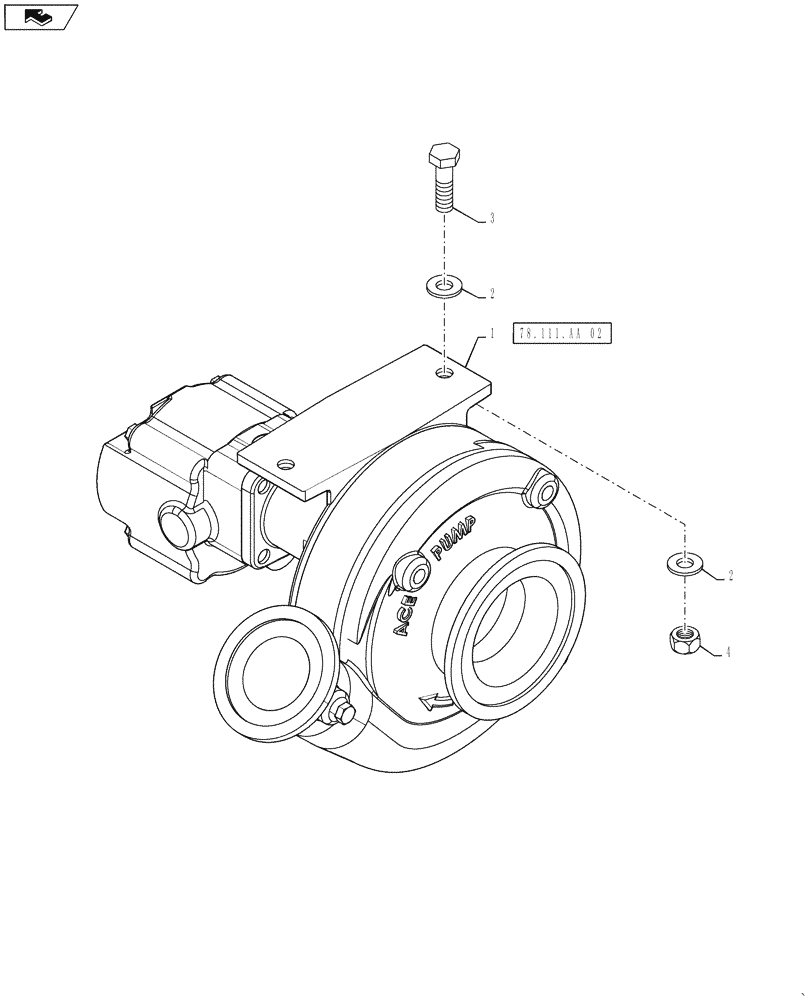

Схема запчастей Case IH 2240 - (78.111.AA[01]) - PRODUCT PUMP MOUNTING (78) - SPRAYING
78.111.aa 02
1
home
2
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

84319987

PUMP,11.49 CC

Product, Complete

1шт.

See Figure 78.111.AA(02) For Service Parts

1шт.

1

84319987R

REMAN-WATER PUMP

Product, Complete

1шт.

1

84319987C

CORE-WATER PUMP

Return Number

1шт.

2

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2 mm, CST, DOR

4шт.

3

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

2шт.

4

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
