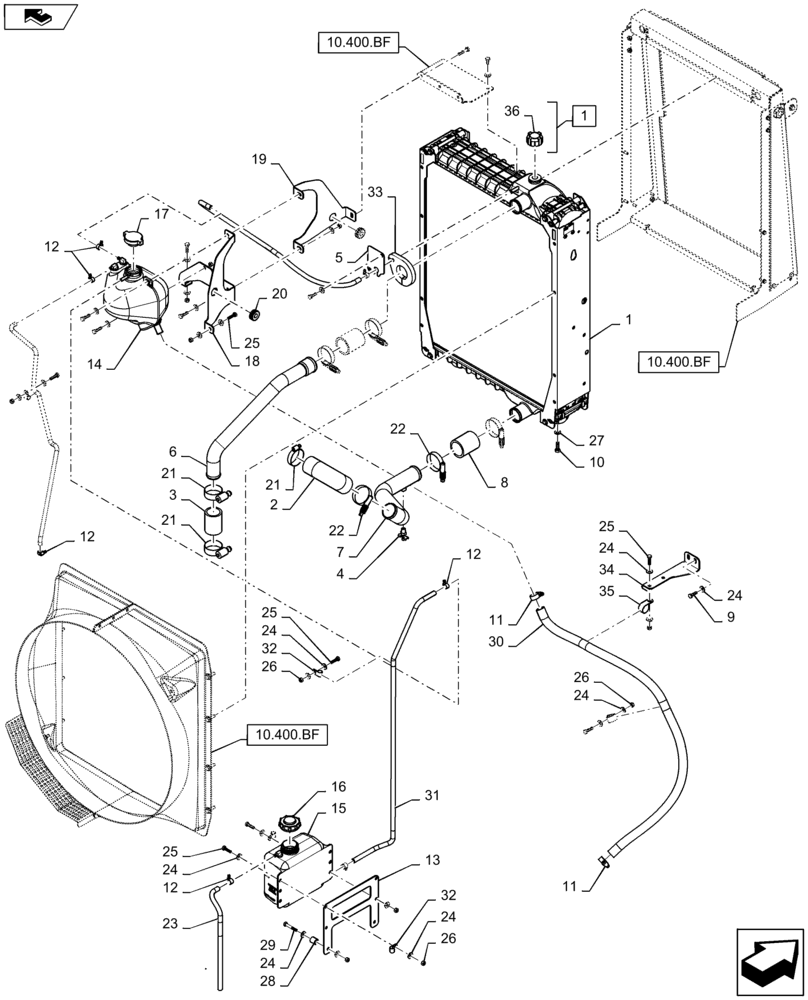

Запчасти Case IH 2240 (10.400.BE[01]) - RADIATOR & RELATED PARTS (10) - ENGINE

1

84391257

RADIATOR

5 Row, Includes Ref. 36

1шт.

2

84586931

HOSE

Radiator, 90 Degree

1шт.

3

84302405

RADIATOR HOSE

75mm long

1шт.

4

217-92

COCK

Drain

1шт.

5

84583791

PLATE

Access Cover

1шт.

6

84356916

TUBE

Upper Radiator

1шт.

7

84586933

TUBE

Lower Radiator

1шт.

8

84583310

HOSE

Straight Connector

2шт.

9

87342022

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

4шт.

10

47417161

BOLT,Hex, M10 x 1.25 x 30mm, Cl 8.8

M10 x 1.25 x 30, 8.8, DOR

2шт.

11

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

1шт.

12

214-1704

HOSE CLAMP,#04, 0.25" - 0.62", Type M Worm

7шт.

13

47394128

BRACKET

Coolant Bottle

1шт.

14

87413715

RESERVOIR

Deaeration

1шт.

15

A184395

RESERVOIR

Coolant Bottle

1шт.

16

154792C1

RADIATOR CAP

Coolant Bottle

1шт.

17

A170241

RADIATOR CAP

Deaeration Tank

1шт.

18

47394133

MOUNT

Deaeration Tank, Front

1шт.

19

47394136

MOUNT

Deaeration Tank, Back

1шт.

20

87300241

GROMMET

Deaeration Tank Mount

2шт.

21

87485001

CLAMP,1.31" - 2.25"

#28, Type F, Worm

3шт.

22

L115548

CLAMP,57.15mm - 79.38mm

2 1/4 / 3 1/8, Worm

5шт.

23

47402227

RADIATOR HOSE

Overflow

1шт.

24

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

23шт.

25

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

11шт.

26

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

12шт.

27

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2mm, DOR

4шт.

28

47392472

SPACER

3/4" OD

2шт.

29

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

2шт.

30

84360999

HOSE

Deaeration

1шт.

31

47402226

RADIATOR HOSE

Deaeration Tank To Coolant Bottle

1шт.

32

515-22127

CLAMP,1/2", Insul, 5/16" Bolt

5шт.

33

84360527

FOAM

Radiator Seal

1шт.

34

84583782

BRACKET

Shrould Support

1шт.

35

515-23286

CLAMP,1-1/8", Insul, 3/8" Bolt

2шт.

36

87306788

RADIATOR CAP

For Ref 1

1шт.
