Запчасти Case IH 2240 (78.110.AI[01]) - SPARGE VALVE ASSY (78) - SPRAYING

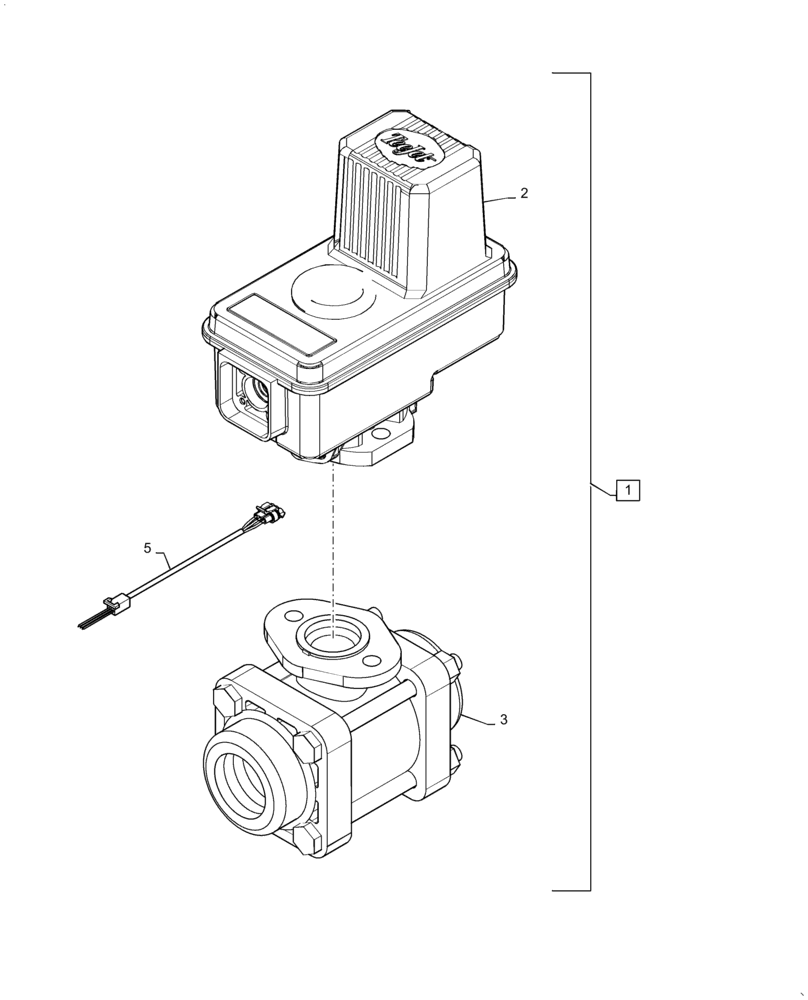

Схема запчастей Case IH 2240 - (78.110.AI[01]) - SPARGE VALVE ASSY (78) - SPRAYING
3
5
2
1

Артикул

Название

Примечание

Количество

1

87271544

VALVE SECTION

Sparge Control Valve, Complete, Incl 2 - 5

1шт.

2

87573653

ELECTRIC MOTOR

Sparge Valve

1шт.

3

87572376

HYDRAULIC VALVE

Assembly

1шт.

4

87572377

REPAIR KIT

Sparge Valve Seal Kit, Not Shown

1шт.

Includes All Seals Required To Repair Complete Valve

1шт.

5

47893234

WIRE HARNESS

Electric Ball Valve

1шт.

Выбрано товаров: 6
