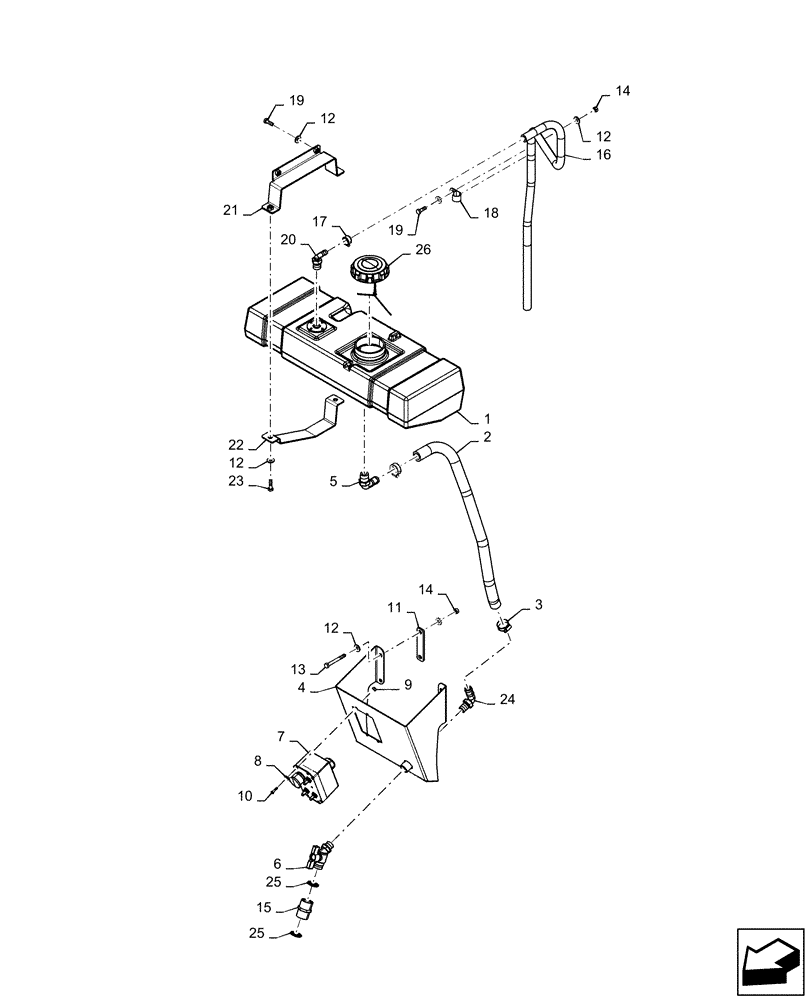

Запчасти Case IH 2240 (78.110.AH[05]) - HAND RINSE, SN YFT041440 AND AFTER (78) - SPRAYING

1

47514651

TANK

Hand Rinse, 9 Liters, Incl 26

1шт.

2

47479056

HOSE

Black, 1/2", EPDM

1шт.

3

BN310446

HOSE CLAMP

#12, 304 SS

2шт.

4

47488840

PANEL

Emergency Stop/Hand Rinse

1шт.

5

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" HS, 90

1шт.

6

BN53817

DRAIN VALVE

Ball, 1/2" NPT x Garden Hose Thread, Blue Handle

1шт.

7

87266536

CONTROL UNIT

Remote Station Reload Center

1шт.

See Figure 55.635.AD 01 For Service Parts

1шт.

8

BN310265

WASHER

#10, Stainless Steel

4шт.

9

BN310266

BHD LOCK NUT,#10-24, Nylon, Stainless Steel

4шт.

10

BN311631

BOLT,#10 - 24 x 3/4", SST

10-24 x .75 SS

4шт.

11

87632103

PLATE

3" Tube

2шт.

12

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

18шт.

13

86980387

BOLT,Hex, M8 x 70mm, Cl 8.8

Hex, M8 - 1.25 x 70mm, Class 8.8, DOR

4шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

5шт.

15

47507453

COUPLING

3/4" FGH w/Gasket

1шт.

16

47479058

HOSE

.50 EPDM

1шт.

17

BN324022

HOSE CLAMP

Hose, #8 304 SS

1шт.

18

87029955

CLAMP,22.2mm, Coat, 10.3mm Bolt Hole, P Type

2шт.

19

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

5шт.

20

BN73511

FITTING

1/2" NPT x 1/2" NPT NH 90

1шт.

21

47526879

MOUNT

Rinse Tank

2шт.

22

47526880

STRAP

Rinse Tank

2шт.

23

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

4шт.

24

BN73519

ELBOW

1/2" MPT x 3/4" HS

1шт.

25

47507441

GASKET,GASKET, GARDEN HOSE, 3/4

Garden Hose

2шт.

26

47596906

CAP

Rinse Tank

1шт.
