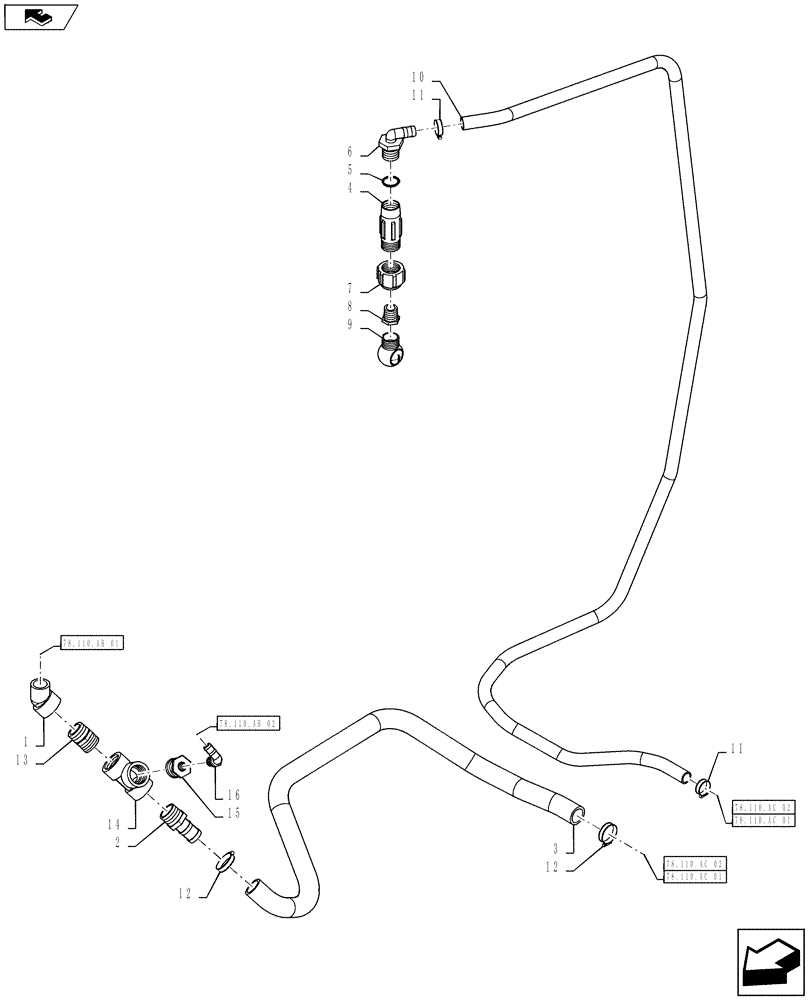

Запчасти Case IH 2240 (78.110.AH[03]) - RINSE SYSTEM PLUMBING (78) - SPRAYING

1

BN310467

ELBOW

1-1/2" NPT x 1-1/2" NPT, Poly, 45º

1шт.

2

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

3

BN53842

HOSE,38.10 mm ID Bulk

EPDM, Discharge, Cut To Required Length

1шт.

4

87270852

NIPPLE,1-1/2" x 5" Poly Nipple

1-1/2" NPT x 1-1/2" NPT x 5", Poly

1шт.

5

55423

SPARE PART,0.21" Thk x 1.475" ID, -325, Cl 5, 75 Duro

1шт.

6

BN323784

FITTING

Elbow, 1-1/2" NPT x 1' Hose Barb, Poly

1шт.

7

BN73737

REDUCER,1-1/2" x 1" Poly Reducing Coupling

Reducer, 1-1/2" NPT x 1" NPT, Poly

1шт.

8

BN53665

BUSHING

1" NPT x 3/4" NPT, Poly

1шт.

9

343509A1

JET

Nozzle, Rinse With Adaptor

1шт.

10

BN53479

HOSE,1.00" ID BULK

EPDM Discharge, Cut To Required Length

1шт.

11

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

12

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

13

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1-1/2" NPT x 1-1/2" NPT, Poly

1шт.

14

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

15

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/2" NPT x 3/4" NPT, Poly

1шт.

16

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, Poly

1шт.
