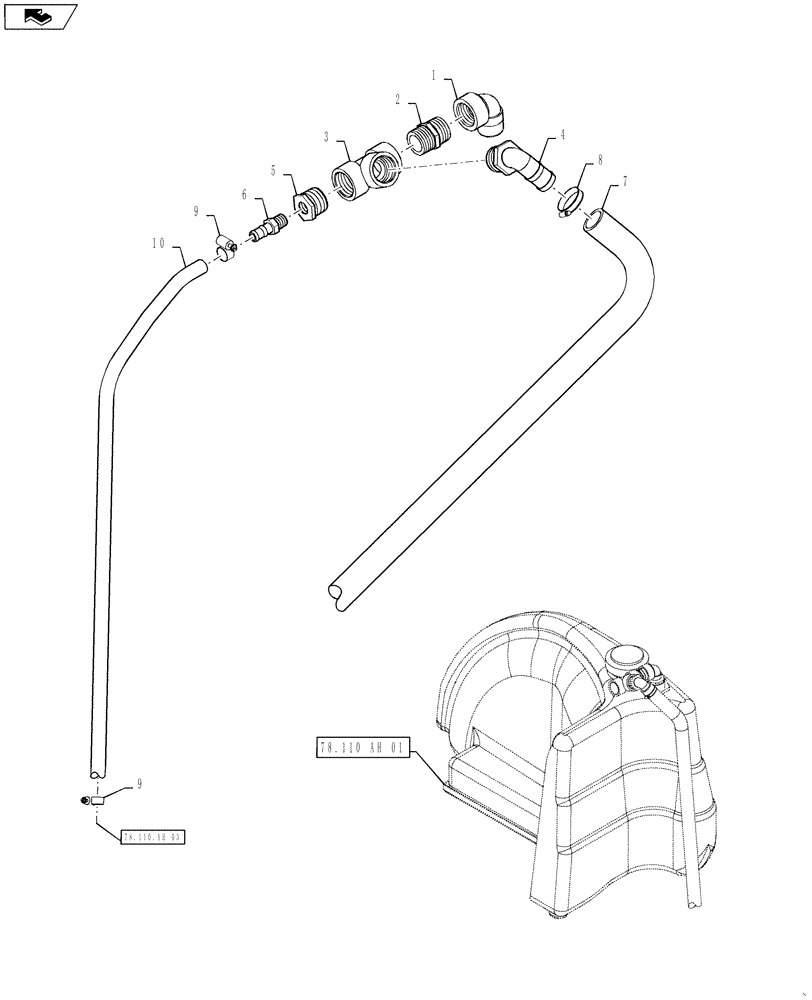

Запчасти Case IH 2240 (78.110.AH[02]) - RINSE TANK SIGHT GAUGE (78) - SPRAYING

1

BN73730

ELBOW,1-1/2", Poly

1-1/2" NPT x 1-1/2" NPT, Poly

1шт.

2

BN73715

NIPPLE,1-1/2" Short Poly Nipple

1-1/2" NPT x 1-1/2" NPT, Poly

1шт.

3

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

4

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

5

BN73716

BUSHING,1-1/2" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/2" NPT x 3/4" NPT, Poly

1шт.

6

BN73561

FITTING

3/4" NPT x 3/4" Hose Barb, Poly

1шт.

7

84310322

HOSE,38.1mm ID x 1023.1mm L

Over Flow

1шт.

8

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

9

87487834

CLAMP,0.81" - 1.5"

#16, Stainless Steel

2шт.

10

BN52310

TUBE,0.75" ID

Bulk, Clear Tubing, Cut To Length Required

1шт.
