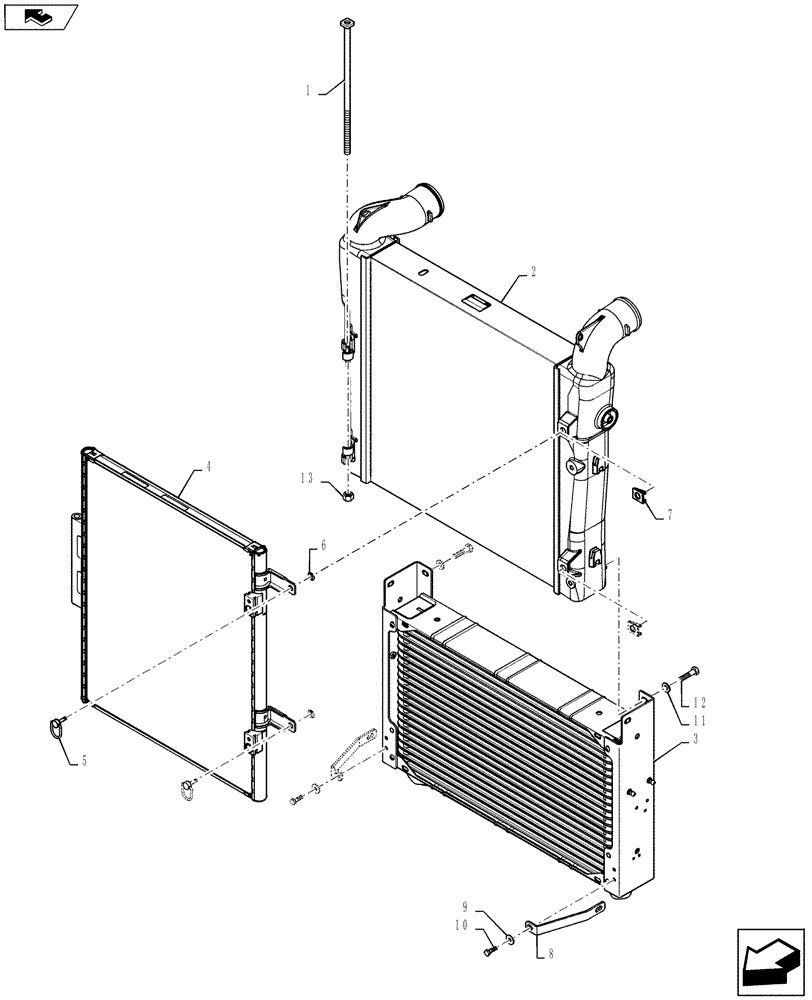

Запчасти Case IH 2240 (10.310.AA[02]) - AFTERCOOLER ASSY (10) - ENGINE

1

87658579

PIN

Hinge

1шт.

2

87739452

COOLER

1шт.

3

84391731

COOLER ASSY.

Hydraulic Oil

1шт.

4

84249273

CONDENSER

Assembly

1шт.

5

87734728

STUD,5mm OD x 56mm L

Assembly

2шт.

6

84137543

SNAP RING

Retainer

2шт.

7

87734730

SPRING CLIP

2шт.

8

84585630

BRACKET

CAC Support

2шт.

9

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

2шт.

10

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

2шт.

11

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

2шт.

12

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

2шт.

13

BN320644

NUT,Hex, M10 - 1.5, NLN, SST

1шт.
