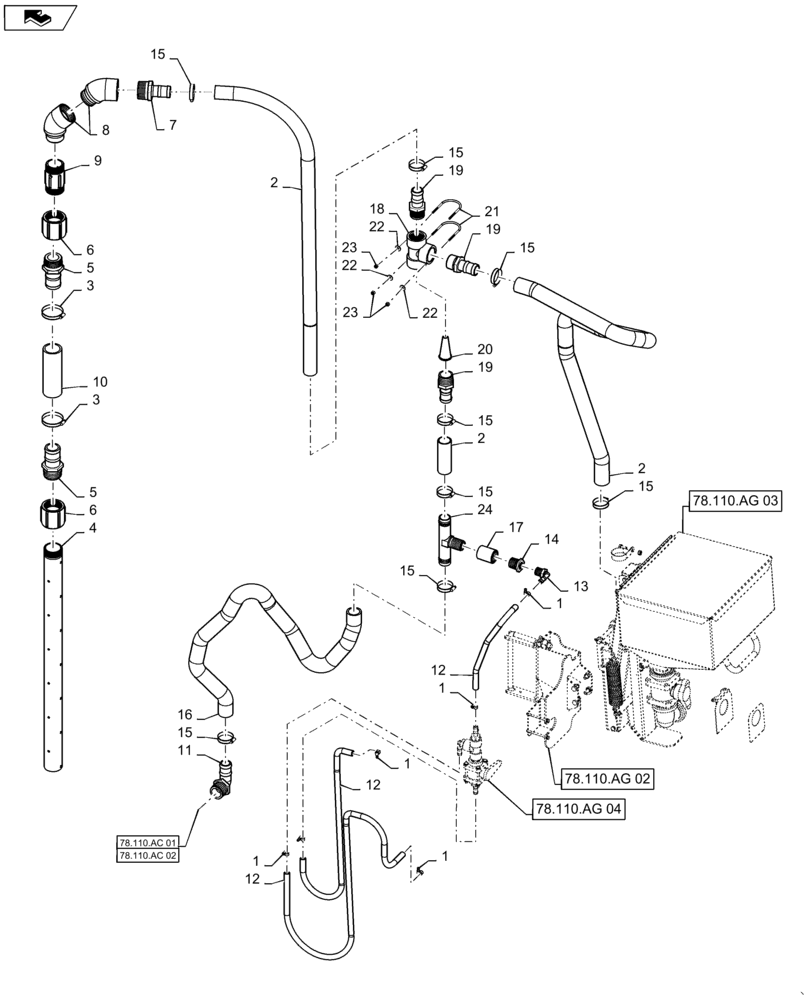

Запчасти Case IH 2240 (78.110.AG[01]) - CHEMICAL EDUCTOR GROUP (78) - SPRAYING

1

87487826

CLAMP,0.44" - 0.78"

Type M, # 06, SST

6шт.

2

BN309785

HOSE

Bulk, 1-1/2" Cut To Length

1шт.

3

BN310449

CLAMP,50mm - 65mm

# 32, SST

2шт.

4

84283596

PIPE

PVC

1шт.

5

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" MPT x 2" Hose Barb, Poly

2шт.

6

84283600

COUPLING,2" Poly Pipe Coupling

2" FPT, Poly

2шт.

7

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" MPT x 1-1/2" Hose Barb

1шт.

8

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

2", Street Elbow

2шт.

9

84283599

NIPPLE,2" x 4" Poly Nipple

2" x 4", Poly

1шт.

10

BN29564

HOSE

Bulk, 2" Cut To Length

1шт.

11

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" MPT x 1-1/2" Hose Barb, Poly

1шт.

12

BN54239

HOSE,12.7mm ID x 3048mm L

Bulk, 1/2", Cut To Length

1шт.

13

BN73578

FITTING

3/4" MPT x 1/2" Hose Barb, Poly

1шт.

14

BN53665

BUSHING

1" x 3/4" Reducer

1шт.

15

BN310448

HOSE CLAMP

# 28, SST

8шт.

16

47404981

HOSE

1-1/2" x 49" Kaniflex

1шт.

17

BN66968

COUPLING

1" Poly

1шт.

18

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" FPT, Poly

1шт.

19

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" MPT x 1-1/2" Hose Barb, Poly

3шт.

20

21384

VENTURI

1-1/2"

1шт.

21

BN303201

U-BOLT

1/4"

2шт.

22

BN50138

WASHER,1/4", SS

4шт.

23

BN55359

LOCK NUT,1/4"-20, SS

4шт.

24

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1" MPT

1шт.
