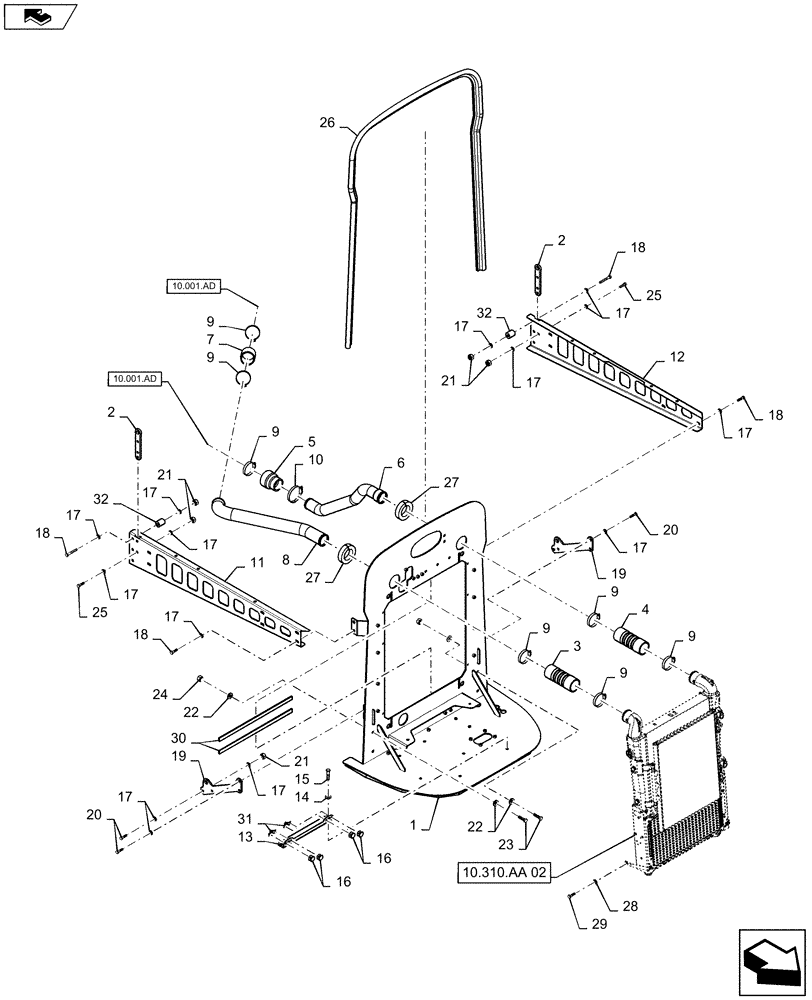

Запчасти Case IH 2240 (10.310.AA[01]) - AFTERCOOLER MOUNTING (10) - ENGINE

1

47596505

MOUNT

CAC

1шт.

2

47402225

LUG

Lifting

2шт.

3

84577470

HOSE

CAC, Hot

1шт.

4

84577444

HOSE

CAC, Cool

1шт.

5

82036504

INTAKE AIR HOSE,57.10 mm ID, 76.00 mm ID x 90.00 mm, SAE J20R4 CLASS C

1шт.

6

84472113

TUBE

CAC Cool Side

1шт.

7

84593659

HOSE

Intake Air

1шт.

8

84537569

TUBE

CAC Hot Side

1шт.

9

82036353

HOSE CLAMP,60 - 80mm X 14.5mm

7шт.

10

82036354

HOSE CLAMP,70mm - 90mm

1шт.

11

84468533

SUPPORT

RH Rail

1шт.

12

84468531

SUPPORT

LH Rail

1шт.

13

84350012

Grill Support

1шт.

14

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

15

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

2шт.

16

86637656

RIVET,Pop, 1/8" x .337"

4шт.

17

87529298

WASHER,11mm ID x 21mm OD x 2mm Thk

11 x 21 x 2 mm, CST, DOR

28шт.

18

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

M10 x 70, CL8, DOR

6шт.

19

47392774

MOUNT

Cooler Brace

2шт.

20

87315279

BOLT,Hex, M10 x 35mm, Cl 10.9

8шт.

21

87344209

NUT,M10 x 1.5, Cl 10, DOR

10шт.

22

86981676

WASHER,13.3mm ID x 28.5mm OD x 4mm Thk

13.5 X 28 X 4mm, CST, DOR

12шт.

23

86980424

BOLT,Hex, M12 x 1.75 x 45, Cl 8.8, DOR

6шт.

24

87344210

NUT

M12 - 1.75, 10.9, DOR

6шт.

25

86980402

BOLT,Hex, M10 x 1.5 x 35mm, Cl 8.8, Full Thd

4шт.

26

84344035

RUBBER BAND

Seal

1шт.

27

84352015

CAC Seal

2шт.

28

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

8шт.

29

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

8шт.

30

84267483

FOAM

CAC Seal

2шт.

31

1961435C1

LATCH

Cab Skirt Spring

2шт.

32

47428375

SPACER

39mm Long

6шт.
