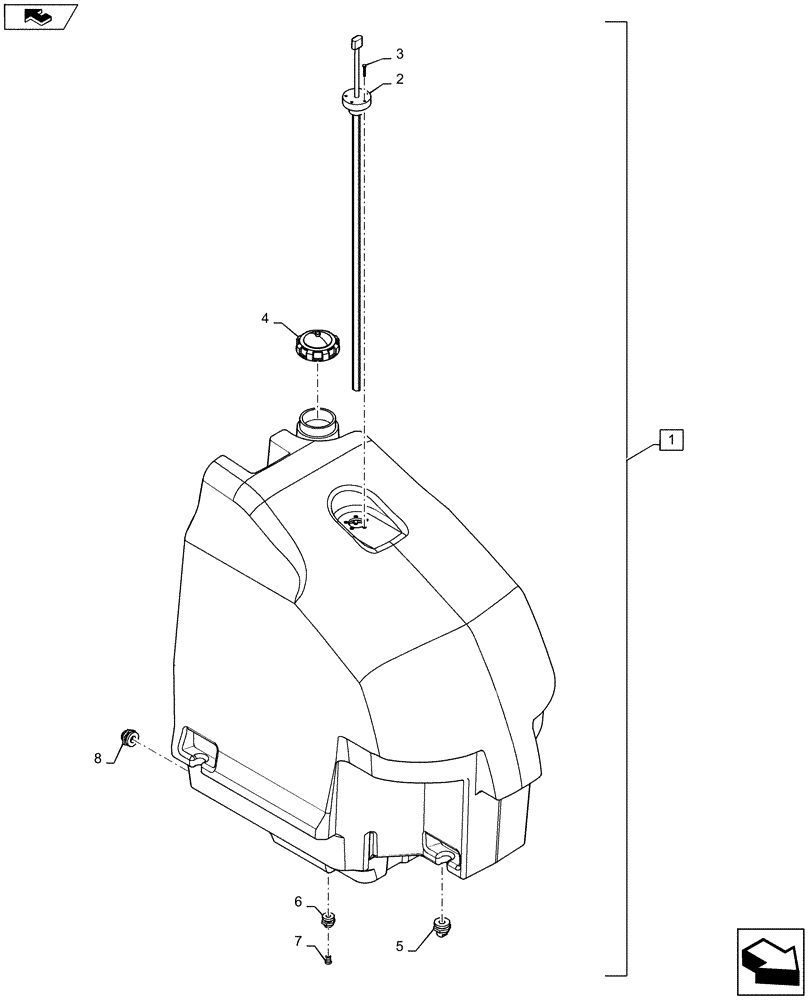

Запчасти Case IH 2240 (10.216.AI[02]) - FUEL TANK ASSY (10) - ENGINE

1

84347714

FUEL TANK

Complete, Incl 2 Through 8

1шт.

2

84176272

SENSOR

Fuel Level, Incl 9

1шт.

3

87270794

BOLT,Hex, M5 x 30mm, SST

SST, M5 x 30

5шт.

4

BN68502

CAP

Fuel

1шт.

5

405109A1

FITTING

3/8" NPT

1шт.

6

BN306082

FITTING

Fuel

1шт.

7

217-406

PLUG,Hex Hd, 1/4" - 18 NPT

1шт.

8

344475A1

FITTING

1/2" NPT

1шт.

9

87268404

GASKET,2.4mm Thk

Included in 2, Not Shown

1шт.
