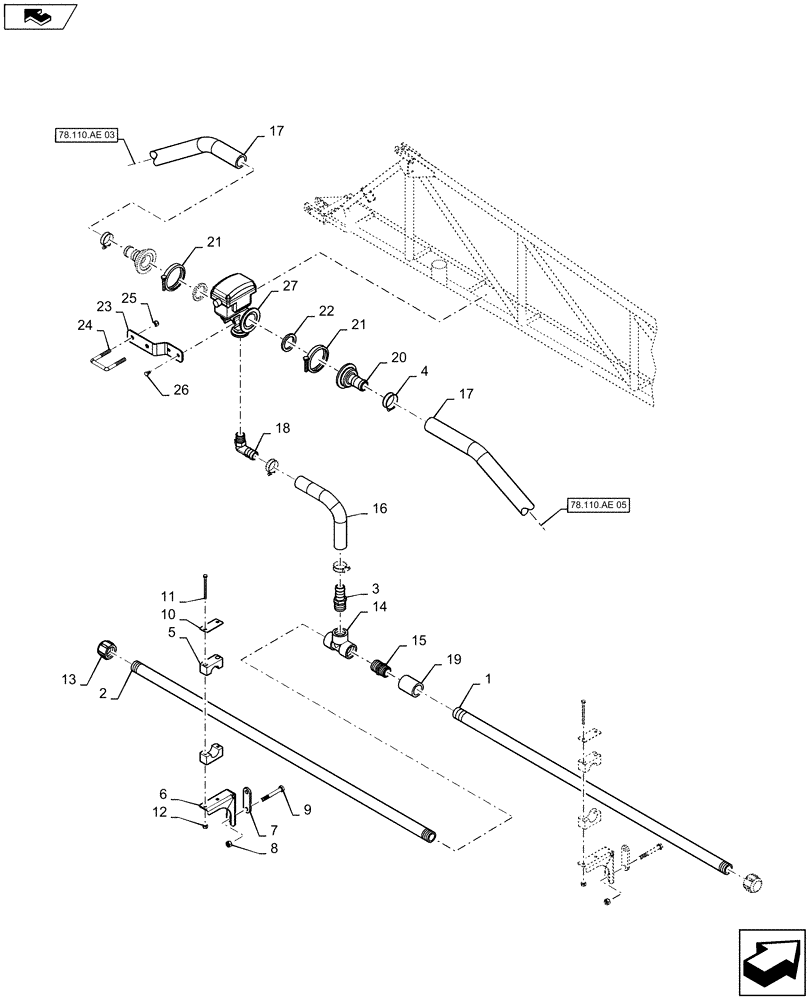

Запчасти Case IH 2240 (78.110.AE[04]) - BOOM PLUMBING, RH, INNER, 20" NOZZLE SPACING, 5 SECTION, 80 (78) - SPRAYING

1

87452553

PIPE

Poly, SCH 80, 9 Hole, 20" Spacing, 14' - 2 1/2" Long

1шт.

2

87452551

PIPE

Poly, SCH 80, 6 Hole, 20" Spacing, 9' - 2 1/2" Long

1шт.

3

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

Poly, 1" MPT x 1" Hose Barb

1шт.

4

BN75990

HOSE CLAMP

SST, # 16

4шт.

5

BN67054

CLAMP

Includes Top And Bottom Halves

7шт.

6

84326076

SUPPORT

Spray Bar Mount

7шт.

7

BN308039

PLATE

Spacer

7шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

7шт.

9

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

14шт.

10

BN309483

PLATE

Cover

7шт.

11

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 x 80, CL 8, DOR

14шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

14шт.

13

BN73606

CAP

Poly, 1"

2шт.

14

BN73629

TEE

Poly, 1", FPT

1шт.

15

BN73648

NIPPLE

Poly, 1", Short

1шт.

16

BN53479

HOSE,1.00" ID BULK

EPDM, Cut To Length Required

1шт.

17

BN29563

HOSE

EPDM, Bulk, Cut To Length Required

1шт.

18

BN73575

FITTING

Poly, 90 Degree, 3/4" MPT x 1" Hose Barb

1шт.

19

BN66968

COUPLING

Poly, 1"

1шт.

20

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2" Flange x 1-1/4" Hose Barb

1шт.

21

BN303199

CLAMP,2" Flange

2" Flange

2шт.

22

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

2шт.

23

87265462

MOUNTING PARTS

Valve Mount

1шт.

24

BN319919

U-BOLT

3/8"

1шт.

25

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

2шт.

26

BN50697

BOLT,Hex, 1/4" - 20 x 1/2", SST

2шт.

27

87632830

SHUT-OFF VALVE

2" Flange, Complete

1шт.

See 78.110.AB 01 For Service Parts

1шт.

28

84385241

MOUNT

Valve Nodes

1шт.

29

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

4шт.
