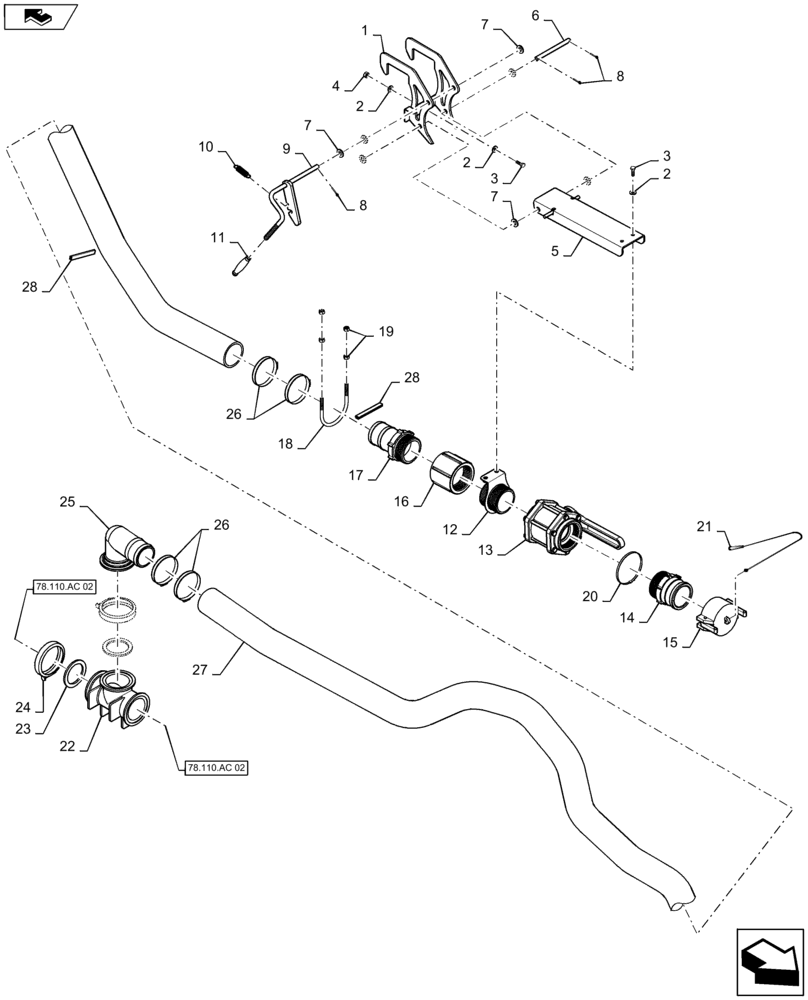

Запчасти Case IH 2240 (78.110.AC[11]) - FRONT FILL, 3" PLUMBING (78) - SPRAYING

1

47581134

BASE PLATE

Valve

1шт.

2

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

3

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

4

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

1шт.

5

84350632

ARM

Valve

1шт.

6

342586A1

PIN,12.7mm OD x 154mm L

Lock

1шт.

7

87529240

WASHER,0.53" ID x 1.06" OD x 0.13" Thk

0.531" x 1.062" x 0.134", HTS, DOR, HDN

7шт.

8

BN1630425

PIN, SPLIT (COTTER)

1/8" x 1"

3шт.

9

84350636

LEVER

Valve Arm

1шт.

10

BN311889

SPRING

1/2" x 2" x .067", Stainless Steel

1шт.

11

BN29274

GRIP

Black-Vinyl, 1/2" ID x 4" Long

1шт.

12

84410641

MOUNT

Valve Mount

1шт.

13

BN303208

VALVE

Ball With Lever, 3" NPT x 3" NPT, Poly

1шт.

14

BN2393306

COUPLING

3" NPT x 3" Cam, Poly

1шт.

15

BN2393384

CAP

3" Cam, Poly

1шт.

16

84410722

PIPE COUPLING,76.2mm ID x 91.281mm L

3" NPT x 3" NPT, Poly

1шт.

17

BN85678

FITTING

3" NPT x 3" Hose Barb, Poly

1шт.

18

BN324240

U-BOLT

Round, M10 - 1.5, 102mm Internal x 122mm Deep

1шт.

19

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

20

306132C1

CABLE TIE,14.5" L

1шт.

21

416624A1

ROPE

Lanyard, Nylon, 1/4" X 12"

1шт.

22

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

3" Manifold

1шт.

23

BN321073

GASKET,3" Flange, EPDM

3" EPDM

1шт.

24

BN321074

CLAMP,101.6mm

3"

1шт.

25

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

3"

1шт.

26

BN324269

HOSE CLAMP

#52, Stainless Steel

4шт.

27

BN326025

HOSE,3.00" ID BULK

Cut To Length Required

1шт.

28

84419983

TRIM

Edge

2шт.
