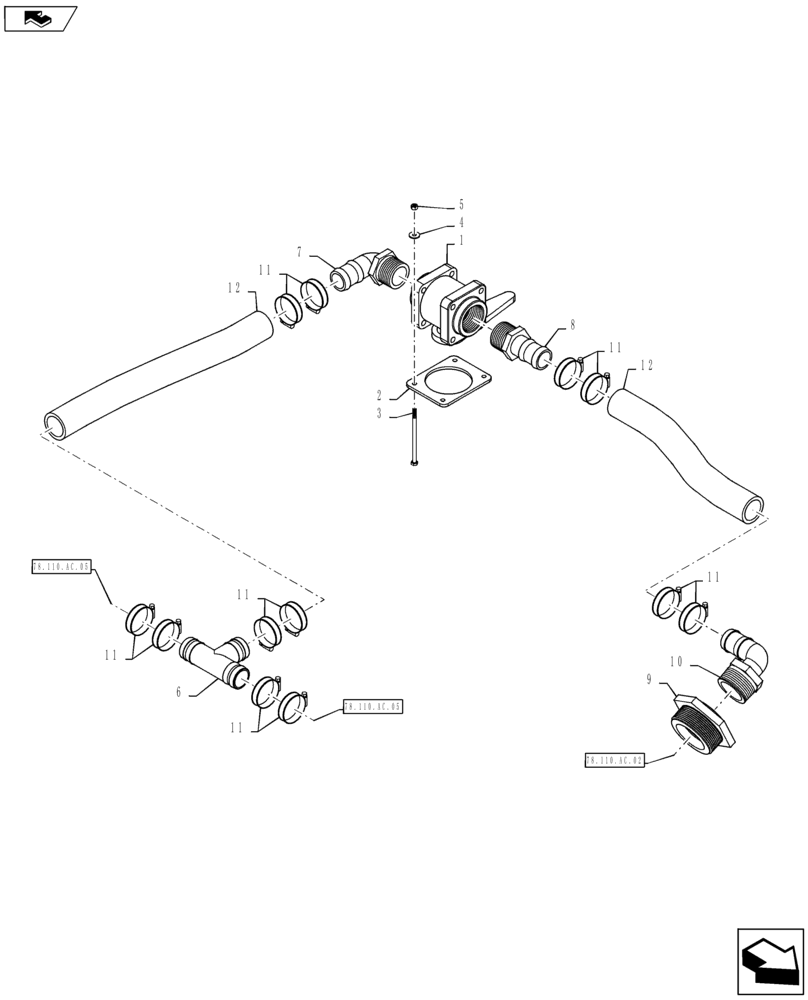

Запчасти Case IH 2240 (78.110.AC[08]) - SUCTION PIPE, SUCTION FILL, 3" PLUMBING (78) - SPRAYING

1

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

Ball With Lever, 1-1/2" NPT

1шт.

2

87272712

FIXING PLATE

Mount

1шт.

3

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

3шт.

4

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

3шт.

5

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

3шт.

6

BN2402038

TEE

1-1/2" Hose Barb, Poly

1шт.

7

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

8

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

9

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" Flange, Poly

1шт.

10

BN322505

FITTING,M220 FP Flanged Hosebarb

2" Flange x 1-1/2" Hose Barb, Poly

1шт.

11

BN313772

GASKET,2" Full Port, EPDM

2" EPDM

1шт.

12

BN313773

CLAMP,2" Full Port

2" Full Port

1шт.

13

BN310448

HOSE CLAMP

#28, Stainless Steel

12шт.

14

84308425

HOSE,38.1mm ID x 737mm L

1-1/2" EPDM

1шт.

15

BN53842

HOSE,38.10 mm ID Bulk

EPDM, Cut To Required Length

1шт.
