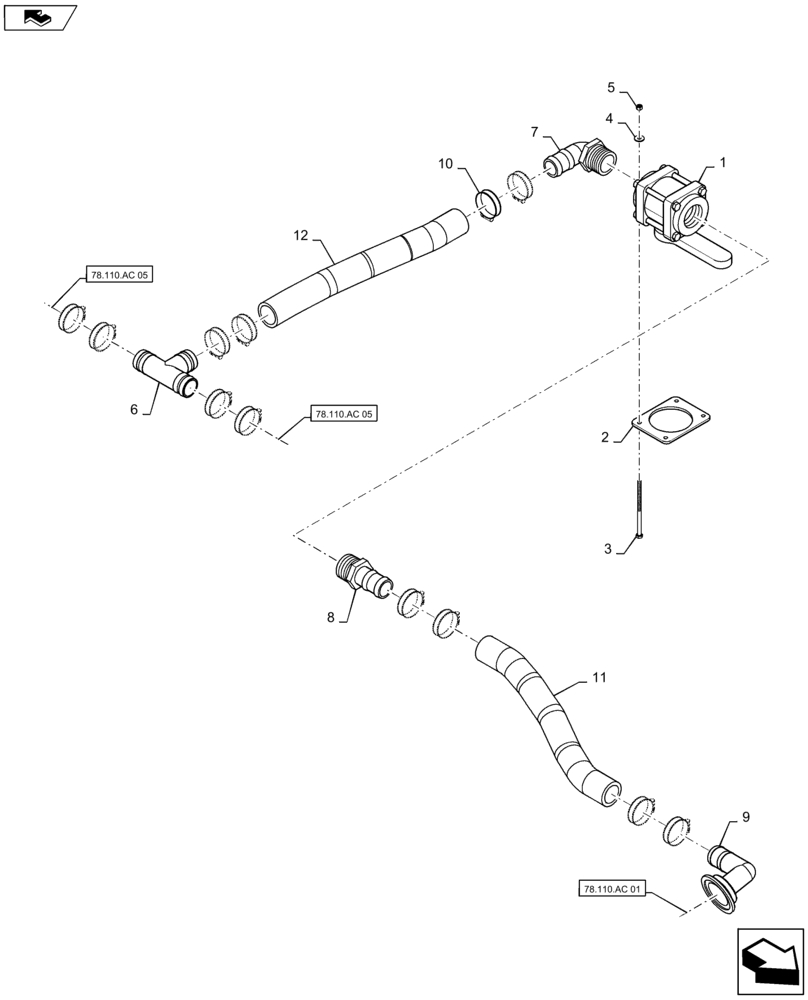

Запчасти Case IH 2240 (78.110.AC[07]) - PIPE, SUCTION FILL, 2" PLUMBING (78) - SPRAYING

1

BN73711

VALVE,1-1/2" NPT x 1-1/2" NPT

Ball With Lever, 1.5" Full Port

1шт.

2

87272712

FIXING PLATE

Mount

1шт.

3

86980371

BOLT,Hex, M6 x 110mm, Cl 8.8

3шт.

4

87529302

WASHER,6.6mm ID x 18mm OD x 1.6mm Thk

6.6 x 18 x 1.6 mm, CST, DOR

3шт.

5

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

3шт.

6

BN2402038

TEE

1-1/2" Hose Barb, Poly

1шт.

7

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

8

BN73725

FITTING,1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

9

BN322505

FITTING,M220 FP Flanged Hosebarb

2" NPT x 1-1/2" Hose Barb, Poly

1шт.

10

BN310448

HOSE CLAMP

#28, Stainless Steel

12шт.

11

BN53621

HOSE,1.50" ID BULK

EPDM, Suction, Cut To Required Length

1шт.

12

BN53842

HOSE,38.10 mm ID Bulk

EPDM, Discharge, Cut To Required Length

1шт.
