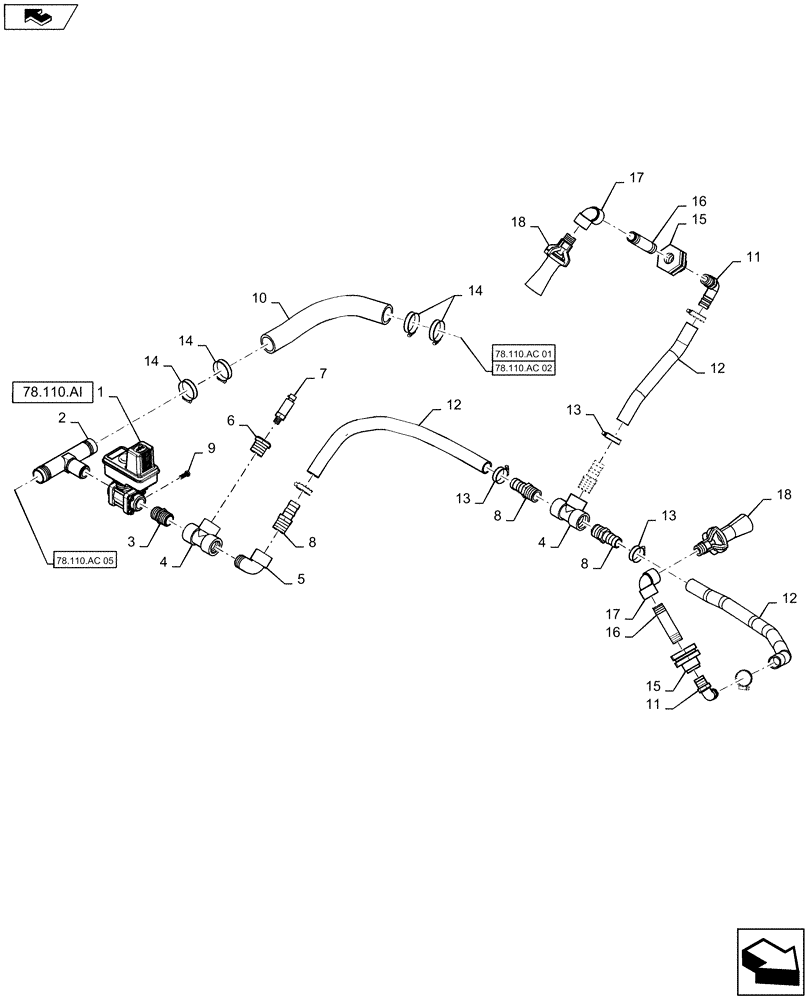

Запчасти Case IH 2240 (78.110.AC[06]) - AGITATOR, PRODUCT AGITATION PLUMBING (78) - SPRAYING

1

87271544

VALVE SECTION

Spage

1шт.

See Fig 78.110.AI For Service Parts

1шт.

2

BN324828

FITTING,1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" Male Thread Hose Barb Tee

1-1/2" Hose Barb x 1-1/2" Hose Barb x 1" MPT, Poly

1шт.

3

BN73648

NIPPLE

1" NPT, Poly

1шт.

4

BN73629

TEE

1" NPT, Poly

2шт.

5

BN53682

ELBOW

1" FPT x 1" MPT, Poly

1шт.

6

BN2390261

REDUCER

Bushing - 1" x 1 /4"

1шт.

7

84201517

TRANSDUCER

Pressure, Sparge PSI

1шт.

8

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

4шт.

9

86980360

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

1шт.

10

BN53842

HOSE,38.10 mm ID Bulk

EPDM, Discharge, Cut To Required Length

1шт.

11

134271C2

ELBOW,ELBOW, 90

3/4" NPT x 1" Hose Barb, Poly

2шт.

12

BN53479

HOSE,1.00" ID BULK

EPDM Discharge, Cut To Length Needed

1шт.

13

BN75990

HOSE CLAMP

#16, Stainless Steel

6шт.

14

BN310448

HOSE CLAMP

#28, Stainless Steel

4шт.

15

BN311041

FITTING

3/4" NPT, Poly

2шт.

16

BN73576

NIPPLE

3/4" x 4", Poly

2шт.

17

87580531

90 ELBOW,3/4" 90 Degree Poly Elbow

1" NPT x 1" NPT, Poly

2шт.

18

BN304248

AGITATOR

Tank Mixing Nozzle

2шт.
