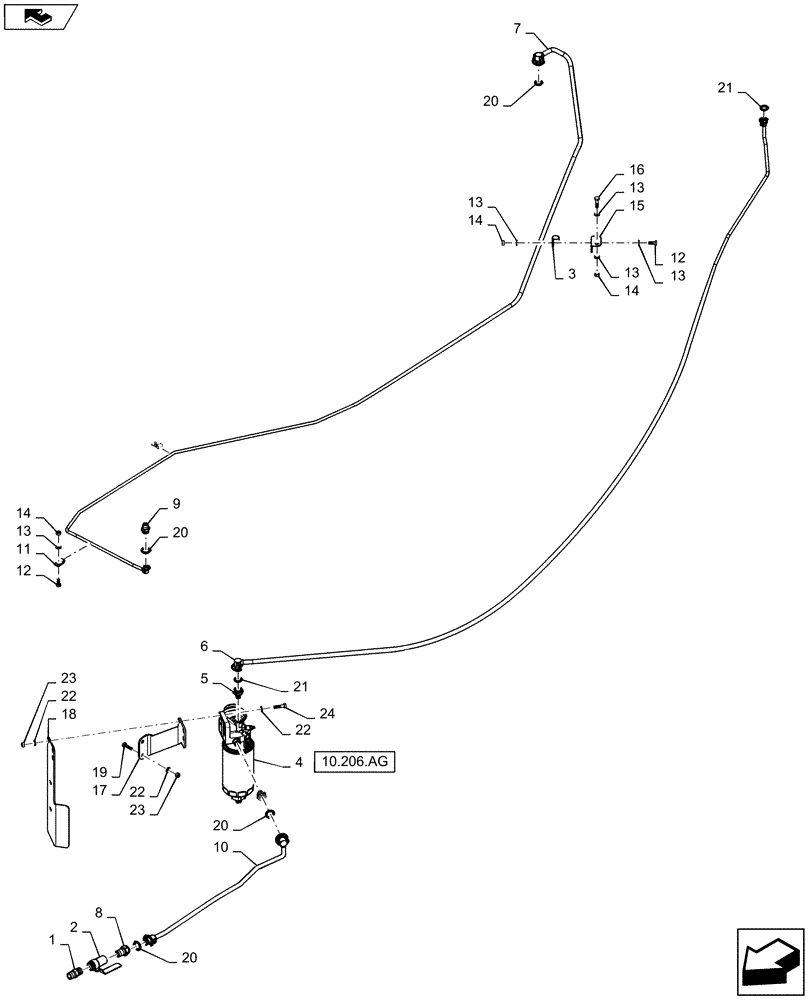

Запчасти Case IH 2240 (10.210.AF[01]) - FUEL LINE AND FITTINGS (10) - ENGINE

1

217-1072

HYD CONNECTOR,1/2" - 14 NPTF

1шт.

2

87265539

VALVE

Ball, 1/2" NPT, Full Port

1шт.

3

515-22190

CLAMP,3/4", Insul, 5/16" Bolt

1шт.

4

84348875

FILTER ASSY

Complete

1шт.

See 10.206.AG for Service Parts

1шт.

5

8602542

ADAPTER,M14 x 1.5 x 16mm ID x 7.90mm ID

NG12 To M14 x 1.5

2шт.

6

84347702

FUEL HOSE

Engine To Tank

1шт.

7

84347701

FUEL HOSE

Filter To Engine

1шт.

8

87270102

FITTING,1/2" NPTF to Quick Connect

NG12 To 1/2" NPTF

1шт.

9

87270105

FITTING

Adapter, Quick Connect

1шт.

10

84347695

FUEL HOSE

Tank To Filter

1шт.

11

853764

CLAMP,7.9mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

12

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

2шт.

13

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2mm HTS DOR

5шт.

14

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

15

84580601

MOUNT

CCV Hose

1шт.

16

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

3шт.

17

47430581

MOUNT

Fuel Hand Pump

1шт.

18

47467336

GUARD

Fuel Hand Pump

1шт.

19

43128

BOLT,M8 x 1.25 x 30mm, Cl 8.8

M8 x 35 Class 8.8 DOR

2шт.

20

87445404

O-RING,2.5mm Thk x 8mm ID, 60 Duro

Viton

4шт.

21

87445405

O-RING

Viton

2шт.

22

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

10шт.

23

86629542

NUT,M8 x 1.25, Cl 8.8

5шт.

24

300381

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8

3шт.
