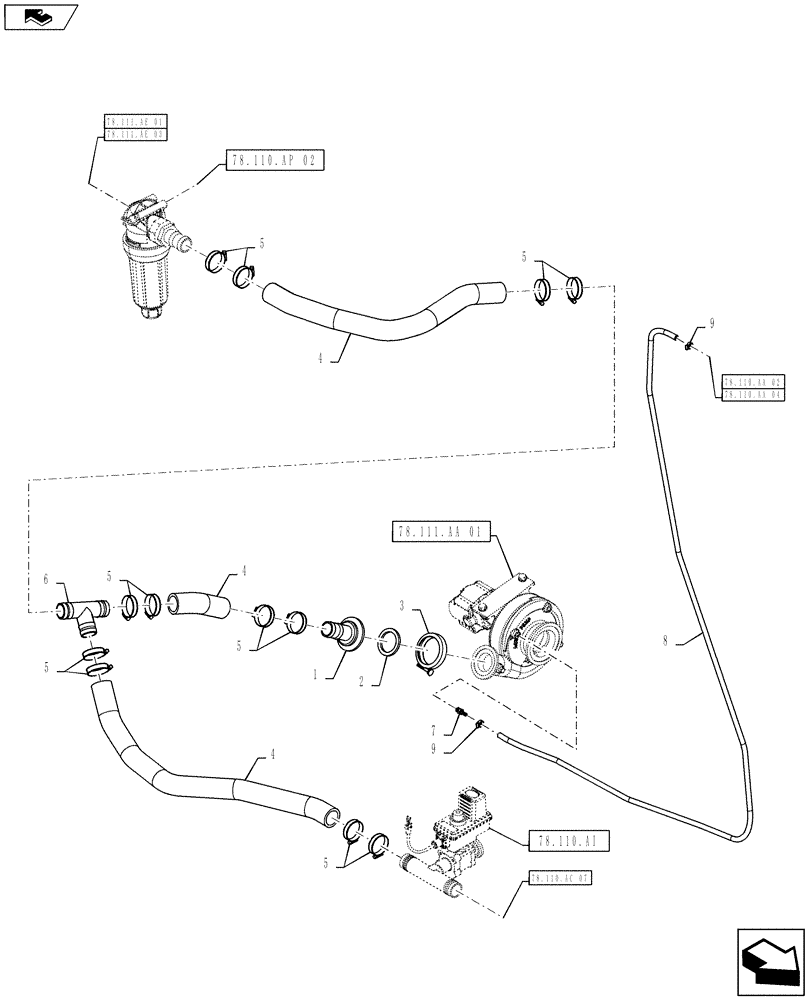

Запчасти Case IH 2240 (78.110.AC[05]) - PRODUCT PUMP PLUMBING (78) - SPRAYING

1

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

2" Full Port Flange x 1-1/2" Hose Barb, Poly

1шт.

2

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

3

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

4

BN53842

HOSE,38.10 mm ID Bulk

EPDM, Discharge, Cut To Length Needed

1шт.

5

BN310448

HOSE CLAMP

#28, Stainless Steel

12шт.

6

BN2402038

TEE

1-1/2" Hose Barb, Poly

1шт.

7

BN72040

FITTING,1/8" MPT x 1/4" HB

1/8" NPT x 1/4" Hose Barb, SST

1шт.

8

BN72041

HOSE

1/4" Bulk EPDM Discharge, Cut To Length Needed

1шт.

9

BN76094

HOSE CLAMP

M4, SS

2шт.
