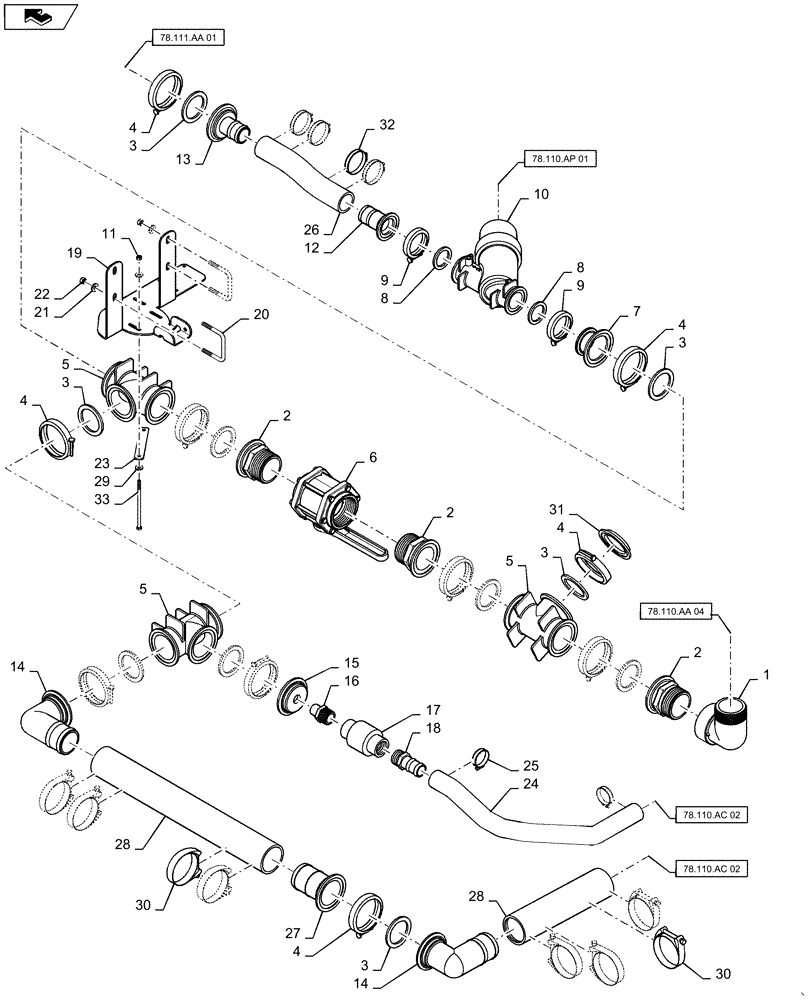

Запчасти Case IH 2240 (78.110.AC[04]) - PRODUCT TANK SUMP, 3" PLUMBING (78) - SPRAYING

1

BN303207

ELBOW

3" NPT x 3" NPT, Poly

1шт.

2

BN321078

ADAPTER

3" Flange x 3" NPT, Poly

3шт.

3

BN321073

GASKET,3" Flange, EPDM

3" Flange, EPDM

10шт.

4

BN321074

CLAMP,101.6mm

Manifold, 3"

10шт.

3

BN321073

GASKET,3" Flange, EPDM

3" Flange, EPDM

10шт.

5

BN321071

FITTING,3" Flange x 3" Hose Barb Tee

3" Manifold

3шт.

6

BN303208

VALVE

Ball With Lever, 3" FPT x 3" FPT, Poly

1шт.

7

BN321072

REDUCER,3" Flange x 2" Full Port Flange, Poly

3" Flange x 2" FPT

1шт.

8

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

2шт.

9

BN313773

CLAMP,2" Full Port

2" Full Port

2шт.

10

47646606

FILTER STRAINER,STRAINER, FILTER, 2.2FLB,

2" Flange

1шт.

See Fig 78.110.AP(01) For Service Parts

1шт.

11

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

12

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange x 2" Hose Barb, Poly

1шт.

13

BN321080

FITTING,3" Flange x 2" Hose Barb, Poly

3" Flange x 2" Hose Barb, Poly

1шт.

14

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

3" Flange x 3" Hose Barb, Poly

2шт.

15

47479760

PLASTIC PLUG,3" Flange Plug with 1" FPT

3" Flange With 1" FPT, Poly

1шт.

16

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" x 1", Poly

1шт.

17

84347992

CHECK VALVE

1-1/4" NPT

1шт.

18

BN2294412

FITTING

1-1/4" NPT x 1-1/2" Hose Barb, Poly

1шт.

19

47479756

MOUNT

Sump Plumbing

1шт.

20

84291458

U-BOLT

Rear Plumbing

2шт.

21

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

22

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

23

47603221

STRAP

Backer, 4-1/2" Tube

1шт.

24

BN309785

HOSE

1-1/2" Kaniflex, Bulk, Cut to Length Needed

1шт.

25

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

26

BN29564

HOSE

2" EPDM, Suction, Bulk, Cut To Length Needed

1шт.

27

BN321075

FITTING,3" Flange x 3" Hose Barb, Poly

3" Flange x 3" Hose Barb, Poly

1шт.

28

BN326025

HOSE,3.00" ID BULK

Suction, EPDM, Bulk, Cut To Length Needed

1шт.

29

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

30

BN2403395

CLAMP

T Bolt For 1-1/2" EPDM

4шт.

31

BN321079

PLUG,3" Flange

3" Flange

1шт.

32

BN2403358

CLAMP,50.8mm - 63.5mm

T Bolt

4шт.

33

86980396

BOLT,M8 - 1.25 x 160mm, Cl 8.8, DOR

M8 x 160, CL8, DOR

2шт.
