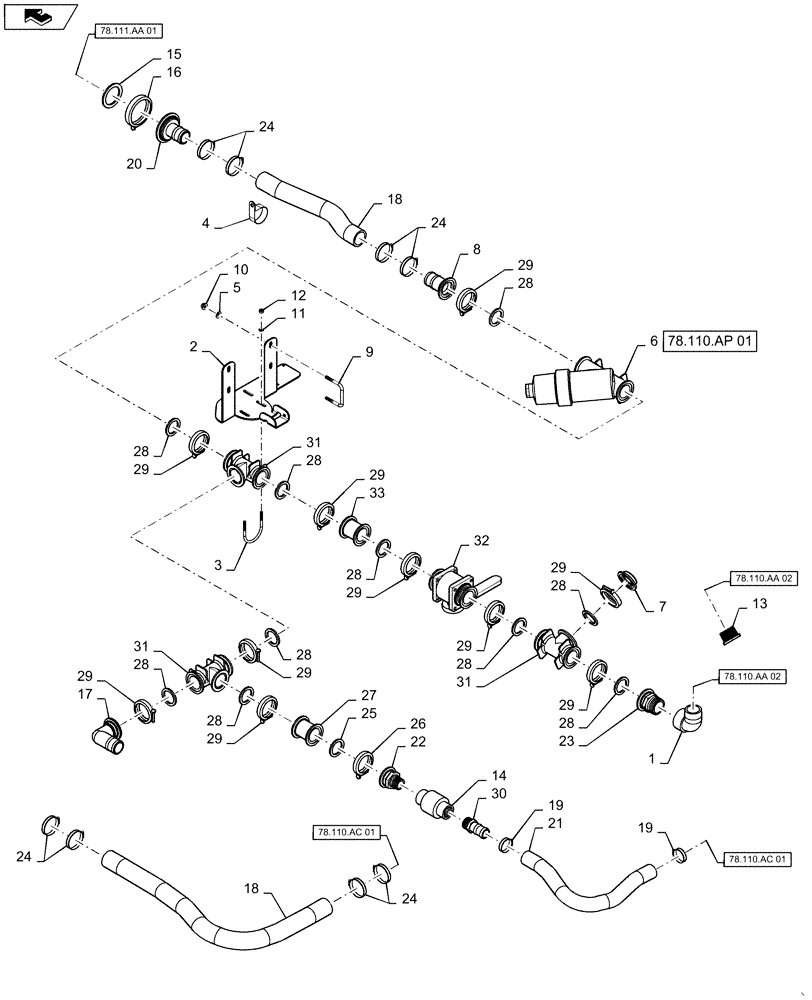

Запчасти Case IH 2240 (78.110.AC[03]) - PRODUCT TANK SUMP, 2" PLUMBING (78) - SPRAYING

1

BN73785

ELBOW

2" NPT x 2" NPT, Poly

1шт.

2

47479756

MOUNT

Sump Pumbing

1шт.

3

84346692

U-BOLT

U-Bolt

1шт.

4

86639009

CLAMP,63.5mm, Coat, 13.5mm Bolt Hole, P Type

Ball With Lever, 2" NPT, Poly

1шт.

5

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

Sump Plumbing

4шт.

6

47646606

FILTER STRAINER,STRAINER, FILTER, 2.2FLB,

Complete, Without Screen

1шт.

See 78.110.AP 01 For Service Parts

1шт.

7

BN322574

PLUG,2" Flange

2" Flange, Poly

1шт.

8

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange x 2" Hose Barb

1шт.

9

84307994

U-BOLT

U-Bolt

2шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

11

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

2шт.

12

86980513

NUT,Prev Torque, Hex, M6, 1mm Pitch, Cl 8, DOR

2шт.

13

BN73794

PLUG,2" Male NPT, Poly

2" NPT, Poly

2шт.

14

84347992

CHECK VALVE

1-1/4" NPT

1шт.

15

BN321073

GASKET,3" Flange, EPDM

3" Flange, EPDM

1шт.

16

BN321074

CLAMP,101.6mm

Manifold, 3"

1шт.

17

BN324065

FITTING,2" Full Port Flange x 2" 90 Degree Hose Barb Elbow

1" Flange x 3/4" Hose Barb, Poly

1шт.

18

BN29564

HOSE

2" EPDM, Suction, Bulk, Cut To Length Needed

1шт.

19

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

20

BN321080

FITTING,3" Flange x 2" Hose Barb, Poly

3" Flange x 2" Hose Barb, Poly

1шт.

21

84308425

HOSE,38.1mm ID x 737mm L

1-1/2" x 914mm, EPDM

1шт.

22

BN306902

FITTING,2" Flange x 1-1/4" Male NPT, Poly

2" Flange x 1-1/4" MPT, Poly

1шт.

23

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

1шт.

24

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

8шт.

25

BN303204

GASKET,1-1/2" EPDM Gasket

2", EPDM

1шт.

26

BN303199

CLAMP,2" Flange

2" Flange

1шт.

27

BN322100

REDUCER,2" Full Port x 2" Reducer Flange

2" Flange, Poly

1шт.

28

BN313772

GASKET,2" Full Port, EPDM

2" Flange

10шт.

29

BN313773

CLAMP,2" Full Port

2" Full Port

10шт.

30

BN2294412

FITTING

1-1/4" MPT x 1-1/2" Hose Barb, Poly

1шт.

31

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

2" Flange, Poly

3шт.

32

BN324057

VALVE,2" Full Port Flange x 2" Full Port Flange

2" Full Port, Flange, Poly

1шт.

33

BN325292

COUPLING

2" Flange, x 2" Flange, Poly

1шт.
